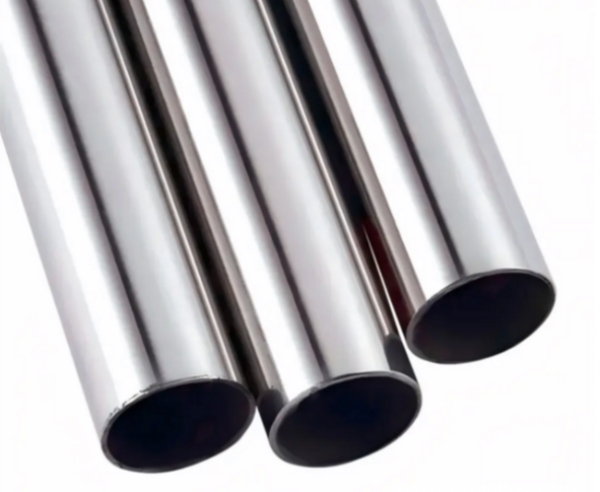

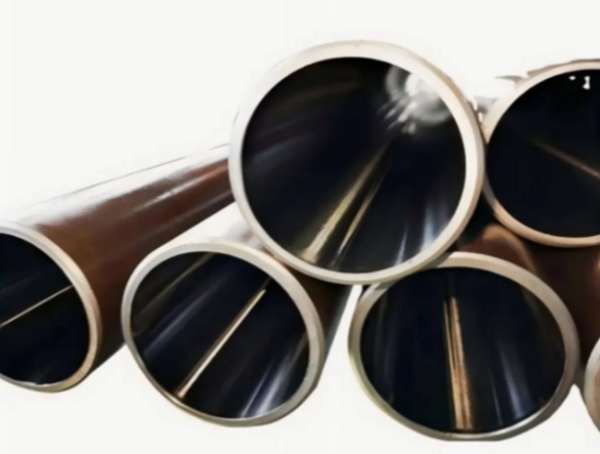

Incoloy 925 (UNS N09925) is a precipitation-hardened nickel-iron-chromium corrosion-resistant alloy incorporated with molybdenum, copper, titanium and aluminum elements. Manufactured mainly as seamless pipes, it perfectly combines high mechanical strength and excellent multi-medium corrosion resistance. Complying with the NACE MR0175/ISO 15156 standards for sour oil and gas working conditions, Incoloy 925 alloy pipes have become one of the most reliable pipeline materials for high-pressure and severely corrosive industrial scenarios, widely used in petroleum, marine, chemical and environmental protection fields.
The most prominent advantage of Incoloy 925 alloy pipes lies in their superior comprehensive corrosion resistance. Firstly, they deliver outstanding resistance to sulfide stress cracking (SSC). In harsh sour environments containing hydrogen sulfide (H?S) and carbon dioxide (CO?), the alloy can effectively avoid cracking failure, making it ideal for high-sulfur oil and gas well operations. Secondly, with high nickel matrix and molybdenum alloying elements, it strongly resists chloride-induced pitting corrosion, crevice corrosion and chloride stress corrosion cracking, adapting to seawater, brine and high-chloride process media. In addition, the chromium component enhances its resistance to oxidative media and high-temperature oxidation, while molybdenum and copper greatly improve its durability in reductive acids such as dilute sulfuric acid and phosphoric acid. This unique component matching enables the pipe to maintain low corrosion rates in complex mixed corrosive environments.
In terms of mechanical properties, Incoloy 925 pipes show remarkable performance advantages different from conventional solid-solution alloys. After solution treatment and aging heat treatment, the alloy precipitates stable γ' strengthening phases, which significantly improves its tensile strength and pressure-bearing capacity. Its mechanical stability remains excellent at room temperature and medium temperature, far exceeding that of Incoloy 825 alloy. Meanwhile, seamless Incoloy 925 pipes feature uniform wall thickness and high dimensional accuracy, ensuring stable structural performance under long-term high-pressure working conditions, which can meet the service requirements of deep and ultra-deep well high-load environments.
In terms of processing and welding performance, Incoloy 925 pipes have good plasticity in the solid solution state, supporting bending and various forming processes for on-site construction. The alloy boasts stable metallurgical structure with no obvious performance degradation under high temperature and high pressure. However, it has strict welding requirements: the welding heat-affected zone will lose partial aging strength. For corrosive working conditions, post-weld heat treatment is mandatory to restore the material’s mechanical properties and anti-cracking performance, and professional welding procedure qualification is required before construction.
Benefiting from the dual advantages of corrosion resistance and high strength, Incoloy 925 alloy pipes cover a wide range of industrial applications. In the petroleum and natural gas industry, they are the preferred materials for downhole tubing, control lines, packers, wellhead pipelines and connectors of high-sulfur oil and gas wells, adapting to harsh sour oil and gas exploitation environments. In marine engineering, they are widely used in offshore platform pipelines, seawater heat exchange tubes and subsea conveying pipelines to resist seawater corrosion and brine erosion. In chemical, salt chemical and environmental protection industries, they serve as process pipelines for conveying mixed acidic media, and are applied in seawater desalination, flue gas desulfurization and papermaking pickling equipment. Moreover, they can be used as cost-effective alternative materials for high-strength corrosion-resistant components in some working conditions.
Q&A
Q1: What is the difference between Incoloy 925 and Incoloy 825 alloy pipes in practical application?
A1: Incoloy 825 is a solid-solution alloy with excellent corrosion resistance but low mechanical strength, suitable for low-pressure and medium-corrosion working conditions. Incoloy 925 can be strengthened by aging treatment to obtain much higher strength and pressure resistance. For high-pressure, deep-well and high-sulfur corrosive environments, Incoloy 925 is the priority choice, while Incoloy 825 is more cost-effective for conventional mild corrosion scenarios.
Q2: What is the key point of welding Incoloy 925 alloy pipes?
A2: The core key is post-weld heat treatment. Welding will damage the aging strengthening structure of the alloy, reducing the strength and sulfide cracking resistance of the heat-affected zone. For all sour and high-pressure service environments, complete post-weld aging heat treatment must be carried out strictly in accordance with standard procedures to ensure the long-term safe service performance of the pipeline.
