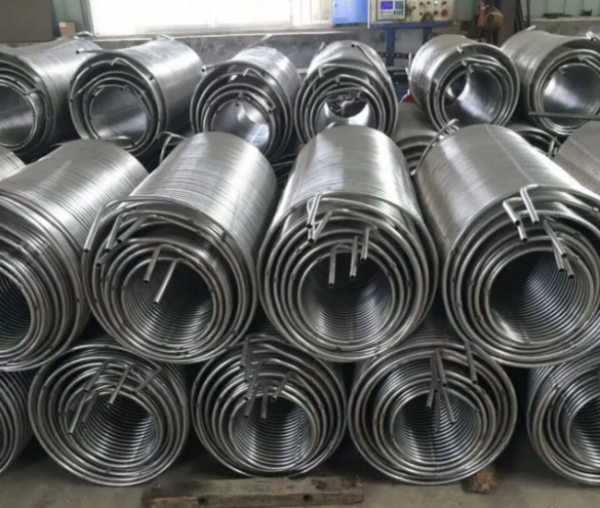

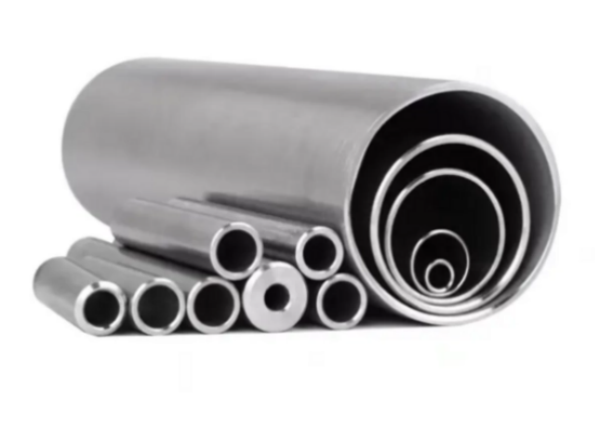

Monel 400 alloy pipe is a classic nickel copper solid solution alloy product manufactured in our factory, produced in compliance with ASTM B165 for seamless pipe and ASTM B725 for welded pipe. The alloy mainly consists of 63 67% nickel and 28 34% copper, plus trace iron, manganese, silicon and carbon. We supply both seamless and welded Monel 400 pipes, including straight tubes, coiled tubing and capillary tubes to satisfy diversified project requirements across global industries.
One of the most outstanding strengths of Monel 400 Alloy Pipe in its distinctive corrosion resistant performance. It performs excellently in hydrofluoric acid, hot alkaline liquor, flowing seawater and various salt containing brine environments, showing strong resistance to chloride induced stress corrosion cracking, pitting and crevice corrosion in marine service. However, users should note that Monel 400 is not suitable for strong oxidizing media such as concentrated nitric acid and hypochlorite, where rapid material degradation will occur.
In terms of mechanical properties, Monel 400 maintains stable strength and good ductility from cryogenic temperature up to around 480 °C without low temperature brittleness. The pipes can be bent, flared, coiled and cold formed for complex on site layout. For fabrication and welding, Monel 400 supports GTAW, GM AW and other common welding methods; normally no post weld heat treatment is required after welding. It should be mentioned that Monel 400 generates obvious work hardening during machining, so suitable cutting tools and optimized cutting parameters are necessary for stable processing.
Our factory provides rich size and surface options. Outer diameter ranges from Φ3 mm to Φ114 mm with wall thickness from 0.5 mm to 10 mm. Available surface finishes include pickled finish, bright annealed (BA), mechanical polishing (MP) and electropolishing (EP). Every batch undergoes strict inspection procedures including dimension check, hydrostatic test and 100% eddy current non destructive testing. Material test certificates conforming to EN 10204 3.1 are offered for each shipment.
Monel 400 alloy pipes cover wide ranging industrial scenarios. In marine and offshore engineering, they are applied for seawater transportation pipelines, seawater cooling circuits, ship piping systems and brine circulation lines on offshore platforms. Within chemical and petrochemical sectors, they serve process piping for hydrofluoric acid units, caustic production equipment, salt chemical facilities and heat exchanger bundles. For oil gas exploitation, Monel 400 pipes are adopted for mildly sour formation brine delivery and well head auxiliary components. Besides, they are widely used in seawater desalination devices, pharmaceutical salt water pipelines and matching piping for pumps & valves.
Q&A
Q1: Can Monel 400 pipe work under concentrated nitric acid service condition
A1: It is not recommended. Monel 400 shows good durability for non oxidizing acids, alkalis and seawater, but suffers fast corrosion in strong oxidizing media like concentrated nitric acid. Choose Inconel series alloys for such working conditions.
Q2: How to select between seamless Monel 400 pipe and welded Monel 400 pipe
A2: Seamless pipe is preferred for high pressure and critical heavy corrosion pipelines. Welded pipe is more cost effective for low pressure regular salt water circulation projects. All our welded pipes are subject to full eddy current inspection before delivery.
Q3: What advantages does Monel 400 pipe have compared with 316L stainless steel seawater pipe
A3: Monel 400 delivers far better resistance against chloride pitting and crevice corrosion than 316L stainless steel, granting much longer service life under long term seawater immersion. Its material cost is higher than stainless steel, so it is the preferred option for high demanding marine corrosion projects.
Jiangsu Zhongxing Nickel Alloy Co., Ltd. specializes in the R&D and production of seamless pipes and capillary coils. We have a wide product portfolio covering nickel alloys, high-temperature alloys, nickel-copper alloys, nickel-titanium alloys, Invar alloys, soft magnetic alloys and other alloy materials. For more information, factory visits are available. Please contact us at 181-2137-6062 for further inquiries.
