GH3044 High-Temperature Alloy: Plate, Bar, or Tube—Which Form Is Most Widely Used?

GH3044 High-Temperature Alloy: Plate, Bar, or Tube—Which Form Is Most Widely Used?

GH3044 is a Ni-Cr-W-Mo solid-solution strengthened superalloy rated for continuous service from 900 °C to 1 200 °C. It is produced in three standard mill forms—plate, bar, and tube—but their usage frequency is far from equal.

Plate – the workhorse (> 60 % of GH3044 tonnage)
• Aerospace: combustion chambers, flame tubes, heat-shields (e.g., 1.5 mm plate welded into a jet-engine combustor running at 1 100 °C).
• Metallurgy: furnace hearths, conveyor belts, heating-element supports; flat, uniform grain structure resists warpage after thousands of thermal cycles.
• Fabrication edge: laser-cut, stamped, brake-formed, or welded into complex 3-D structures—ideal for large-area, thin-wall components.

Bar – the load-bearing specialist (~30 % of tonnage)
• Aerospace: turbine shafts, blade roots, high-temp bolts (Ø 20 mm bar bolts in rocket engines endure 800 MPa tensile loads at 950 °C).
• Petrochemical: valve stems, agitator shafts in reformers.
• Microstructure: forged bars give dense, fine grains → superior creep rupture strength for rotating or reciprocating parts.

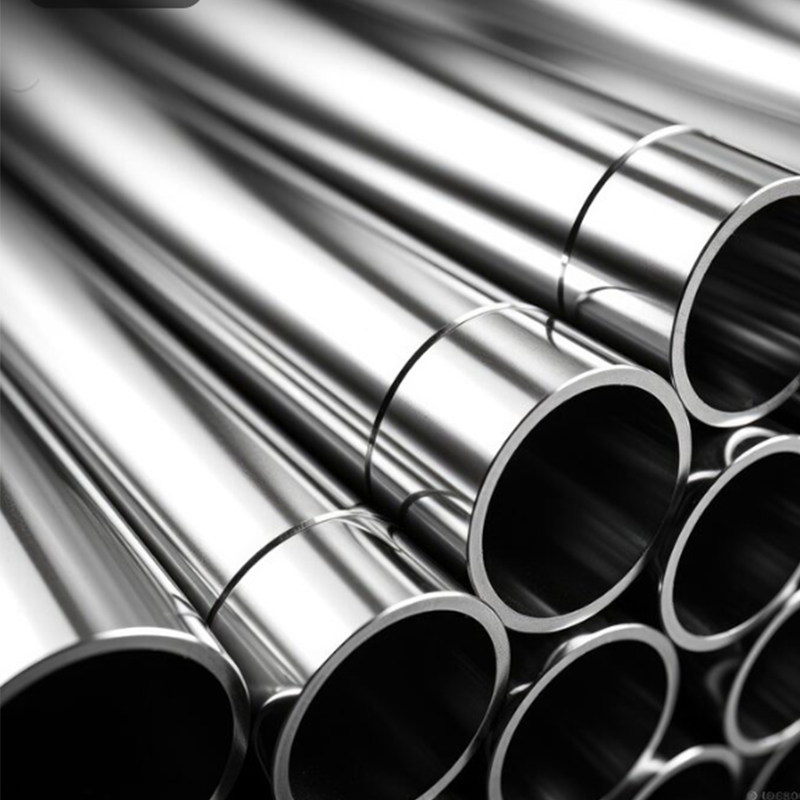

Tube – the niche fluid conduit (< 10 % of tonnage)
• Applications: fuel lines, high-pressure steam piping, cracking-furnace coils (Ø 50 mm seamless tube survives 1 000 °C for > 5 000 h).
• Constraint: higher cost due to piercing, cold-rolling, and tight OD/WT tolerances; demand limited to specialized fluid-transfer duties.

Bottom line
Plate dominates because it covers the broadest spectrum of high-temperature structures and is easiest to convert into finished parts. Bar follows for mechanically loaded components, while tube remains a specialty product for corrosive, high-temperature fluid service.
