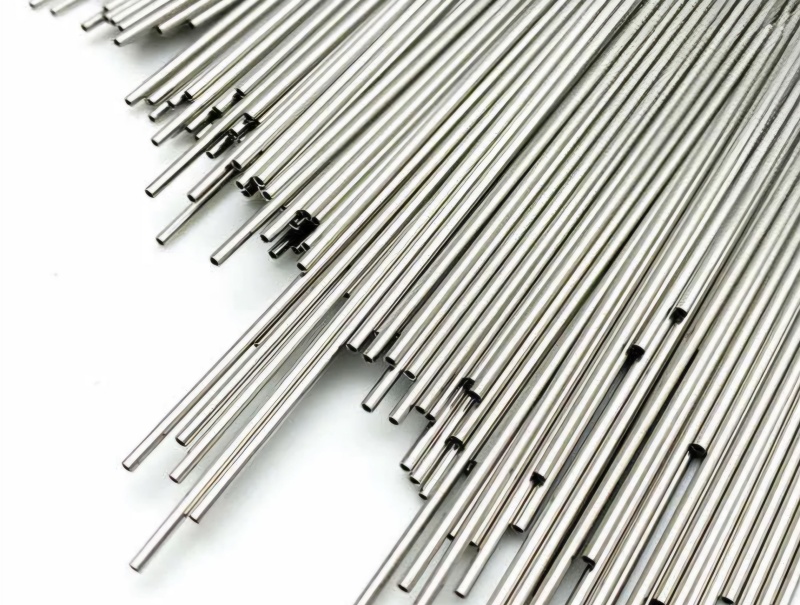

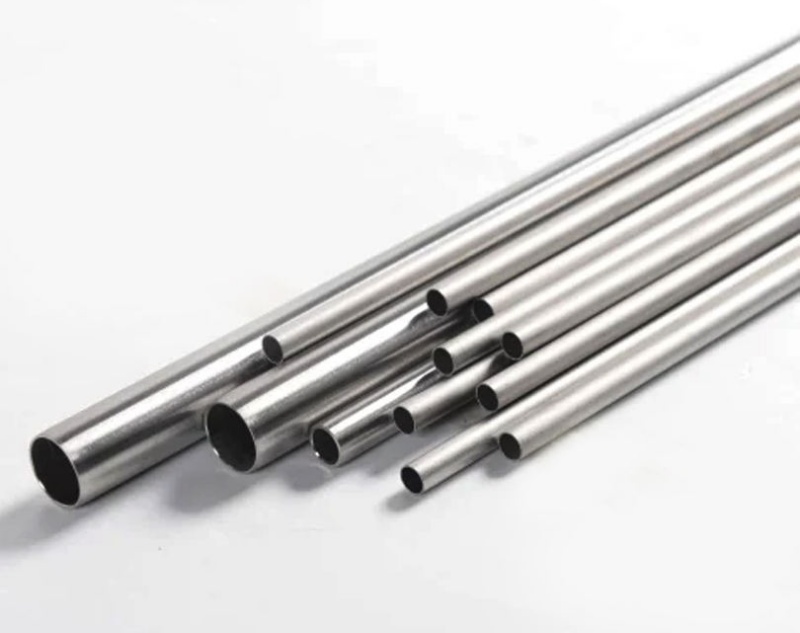

As a professional nickel alloy source manufacturer, we produce seamless Inconel 601 capillary tubes (UNS N06601, W.Nr.2.4851) manufactured to ASTM B167 standards. This nickel chromium iron aluminum solid solution alloy stands out in high temperature cyclic environments, widely used for thermocouple sheaths, furnace atmosphere sampling lines and high precision sensing pipelines where ordinary stainless steel capillaries fail quickly under repeated heating cooling cycles.
Its most valuable feature comes from controlled aluminum addition in the chemical composition. A tightly bonded mixed alumina chromia oxide scale forms on the tube surface under high temperature exposure. This protective layer hardly peels off during frequent thermal cycling, delivering reliable oxidation resistance up to 1100 °C. It also shows decent resistance against carburizing and mild sulphur containing flue gas, making it well suited for heat treatment furnaces, waste incineration and kiln related equipment. While built for high temperature gas environments, Inconel 601 capillary offers moderate general corrosion resistance for neutral salt and weak alkali media.
Our Inconel 601 capillaries are made by multi pass cold drawing paired with intermediate solution annealing. The process relieves heavy work hardening generated during deformation and prevents tube cracking. We supply outer diameters from 0.4 mm to 16 mm with wall thickness ranging from 0.1 mm to 3.0 mm. Multiple surface finishes including bright annealed (BA), mechanical polishing (MP) and electropolishing (EP) are available. Smooth inner surfaces reduce carbon deposit and particle build up for stable gas sampling performance. Every batch passes eddy current inspection and full dimensional verification, with EN 10204 3.1 mill test reports provided for material traceability.
In terms of fabrication, Inconel 601 capillary can be bent and welded for compact equipment assembly. Operators need to watch out for its work hardening characteristic; gentle forming parameters are required for thin wall sizes. Typical real world uses cover thermocouple protection sleeves, furnace gas sampling tubing, petrochemical high temperature sensing lines, aerospace auxiliary measuring conduits and waste treatment plant probe tubes. It is worth noting that this grade is not designed for severe reducing acid corrosion scenarios.
Q&A
Q1: How do I choose between Inconel 601 and Inconel 600 capillary tube
A1: Inconel 601 contains aluminium for superior cyclic high temperature anti spalling oxidation performance, ideal for furnace thermal cycling service. Inconel 600 works better for moderate temperature general corrosion conditions when extreme cyclic oxidation is not the main concern.
Q2: Can Inconel 601 capillary be bent on site during equipment installation
A2: Yes, it has good ductility. Users must respect minimum bend radius limits to avoid wall thinning or tube collapse. For critical high temperature devices, pre formed tubes supplied from factory are highly recommended.
Q3: Is Inconel 601 capillary suitable for strong mineral acid corrosive service
A3: Not recommended. Its core strength lies in high temperature oxidation resistant gas environments. For heavy liquid acid corrosion, opt for Inconel 625 or Hastelloy series capillary products instead.
Jiangsu Zhongxing Nickel Alloy Co., Ltd. specializes in the R&D and production of seamless pipes and capillary coils. We have a wide product portfolio covering nickel alloys, high-temperature alloys, nickel-copper alloys, nickel-titanium alloys, Invar alloys, soft magnetic alloys and other alloy materials. For more information, factory visits are available. Please contact us at 181-2137-6062 for further inquiries.
