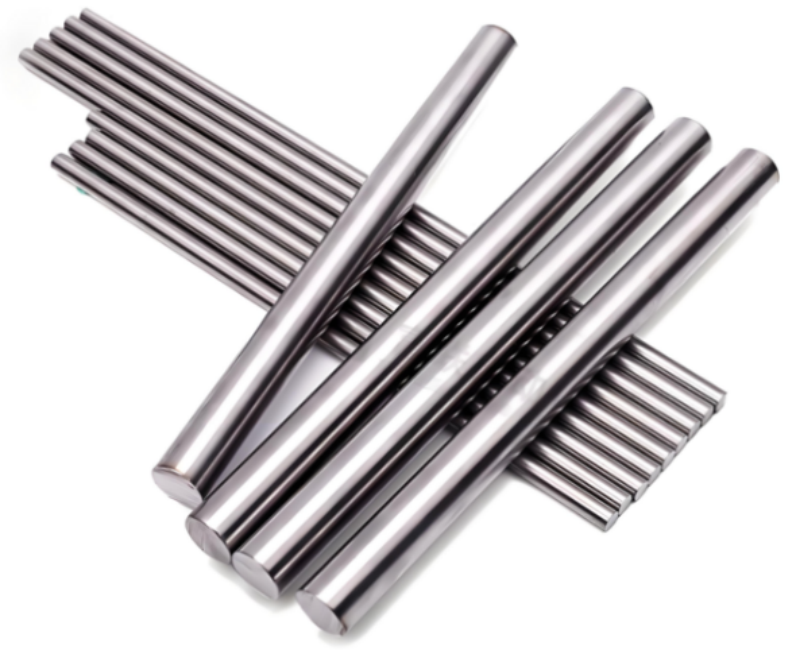

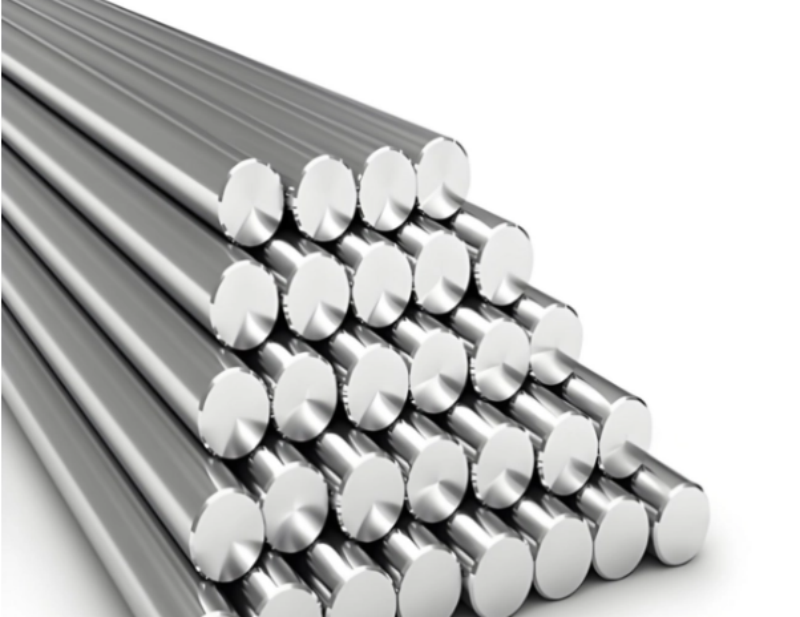

Inconel 625 round bar (UNS N06625, W.Nr.2.4856, Chinese grade GH3625) is a well known solid solution strengthened nickel chromium superalloy bar, manufactured strictly to ASTM B446 / ASME SB446 standards. Strengthened by molybdenum and niobium elements without precipitation aging treatment, this alloy maintains stable mechanical performance from cryogenic conditions up to 980 °C. As a core product of our nickel alloy factory, it is available in multiple diameters and surface finishes for aerospace, oil gas, marine and chemical processing projects worldwide.
In terms of core performance features, Inconel 625 round bar combines high strength, superior corrosion resistance and good fabricability. Molybdenum and niobium embedded in the nickel chromium matrix deliver high tensile strength, excellent creep resistance and thermal fatigue properties at elevated temperatures. It offers outstanding resistance to chloride induced pitting, crevice corrosion and stress corrosion cracking. It performs reliably against seawater, H S/CO sour oil gas media, acid alkali mixed fluids, high temperature oxidation and carburizing environments. Unlike precipitation hardened superalloys, solution annealed Inconel 625 can be directly put into service without further aging heat treatment.
This alloy supports diverse forming and welding operations. TIG, MIG and other common welding methods are applicable; welded joints retain most strength and corrosion resistance of base metal, and normally no post weld heat treatment is required. Hot forging, rolling, turning and milling can be carried out, yet users should note its rapid work hardening effect during machining. Special cutting tools, low cutting speed and sufficient coolant are recommended for machining work. Our factory supplies round bars in diameter ranging from Φ3 mm to Φ200 mm, and custom forged larger sizes are acceptable. Surface options include hot forged black surface, pickled surface, cold drawn bright bar and precision ground bar for different tolerance requirements.
Our standardized manufacturing workflow guarantees consistent product quality. Raw materials adopt vacuum induction melting plus electroslag remelting to reduce impurity content and improve ingot metallurgical purity. After hot forging or hot rolling, billets go through solution annealing to achieve homogeneous grain structure and release internal residual stress. Subsequent processes include peeling, cold drawing or precision outer circle grinding according to customer drawing requirements. Every batch undergoes strict quality control procedures: dimension inspection, visual surface check, mechanical property testing and 100% ultrasonic non destructive testing (UT). Material test certificates complying with EN 10204 3.1 are provided for each shipment.
In practical industries, Inconel 625 round bar is widely processed into various key components. In aerospace, it is used for engine fasteners, shaft parts and high load structural bolts. For oil gas exploitation, it makes downhole tools, well head valve stems and sour service bolts resisting corrosive formation fluid. In marine engineering, it produces seawater pump shafts and offshore platform connecting components. It also serves agitator shafts, fasteners and internal parts for flue gas desulfurization equipment in chemical, environmental protection and nuclear power facilities.
Q&A
Q1: What is the main difference between Inconel 625 and Inconel 718 round bar
A1: Inconel 625 is solid solution strengthened and used in solution annealed condition with better comprehensive corrosion resistance. Inconel 718 belongs to precipitation hardening alloy, which must receive aging heat treatment to reach full strength. Select Inconel 625 when corrosion resistance is the primary concern.
Q2: Can Inconel 625 round bar be applied for long term seawater immersion service
A2: Yes. It has excellent resistance against chloride pitting and crevice corrosion, and is widely adopted for marine equipment. Optimized structural design should avoid stagnant crevices to extend service life.
Jiangsu Zhongxing Nickel Alloy Co., Ltd. specializes in the R&D and production of seamless pipes and capillary coils. We have a wide product portfolio covering nickel alloys, high-temperature alloys, nickel-copper alloys, nickel-titanium alloys, Invar alloys, soft magnetic alloys and other alloy materials. For more information, factory visits are available. Please contact us at 181-2137-6062 for further inquiries.
