Key Considerations When Selecting Monel 400 Alloy Pipe

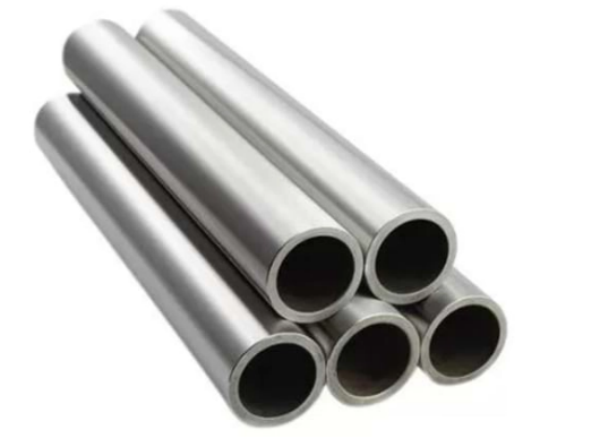

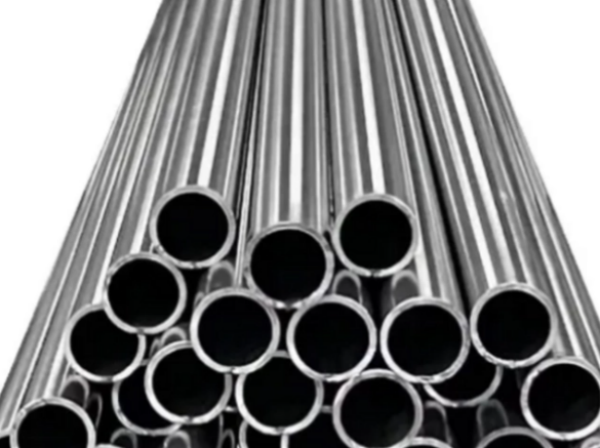

As a professional nickel alloy source manufacturer, we supply both seamless and welded Monel 400 (UNS N04400) pipes complying with ASTM B165 and ASTM B725 standards. Many engineers only focus on its well known seawater and hydrofluoric acid resistance, yet overlook critical application limits and specification details that may cause unexpected field failures. Proper material selection requires matching medium characteristics, operating conditions, pipe construction and quality documentation together.

First, users need to clearly understand Monel 400’s corrosion working boundaries. This nickel copper solid solution alloy performs excellently under reducing type conditions, including flowing seawater, brine, hydrofluoric acid and hot caustic solutions. However, it contains almost no chromium, so it cannot stand strong oxidizing media such as concentrated nitric acid, hypochlorite and ferric ion rich fluids. Even for hydrofluoric acid service, dissolved oxygen will greatly accelerate corrosion rates. If process fluid carries oxidizing contaminants, Inconel 625 or Hastelloy series alloys should be considered as alternatives.

Second, choose between seamless and welded construction according to pressure and corrosion risk. Seamless Monel 400 pipe eliminates weld zone weak points, making it our primary recommendation for high pressure, sour medium and critical chemical loops. Welded Monel 400 pipe brings cost advantages for large diameter, low pressure circulating systems, but must go through full post weld heat treatment and 100 % eddy current inspection before delivery. In addition, confirm pipe wall thickness, schedule number and operating temperature; Monel 400 maintains stable mechanical properties up to around 480 °C, while performance will gradually drop beyond this range.

Surface finish and documentation also cannot be ignored. Pickled finish suits general industrial piping. Electropolished EP surface is required for instrument sampling lines and clean process loops to reduce particle adhesion. Every formal order should require mill test reports meeting EN 10204 3.1, verifying UNS number, chemical composition and mechanical test data to avoid substitute materials. Though Monel 400 shows good weldability without mandatory post weld heat treatment, design teams still need to evaluate local stress for heavy duty equipment.

Q&A

Q1: Can Monel 400 pipe be used in nitric acid working conditions

A1: Not recommended. Monel 400 has poor resistance to strong oxidizing nitric acid. For oxidizing acid environments, select chromium molybdenum containing nickel base alloys such as Inconel 625.

Q2: When should I pick seamless Monel 400 pipe over welded version

A2: Go with seamless pipes for high pressure systems, hydrofluoric acid pipelines and long life offshore service. Welded pipes work for low pressure, non critical circulating lines with complete non destructive testing.

Q3: What documents should we request when purchasing Monel 400 pipe

A3: Confirm UNS N04400 marking, ASTM standard number, and full EN 10204 3.1 mill test reports including chemical composition, mechanical data and non destructive inspection records.
