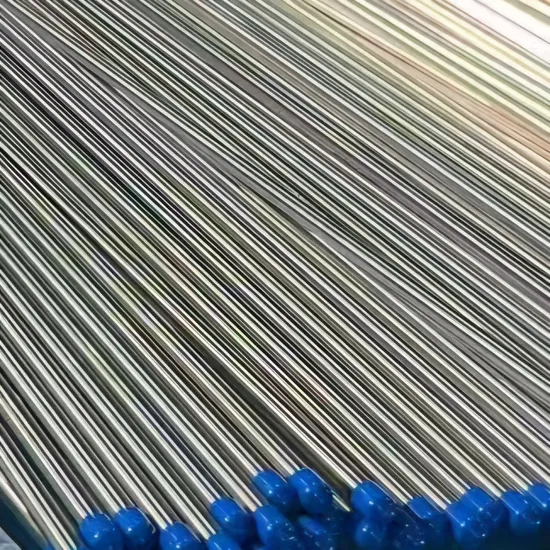

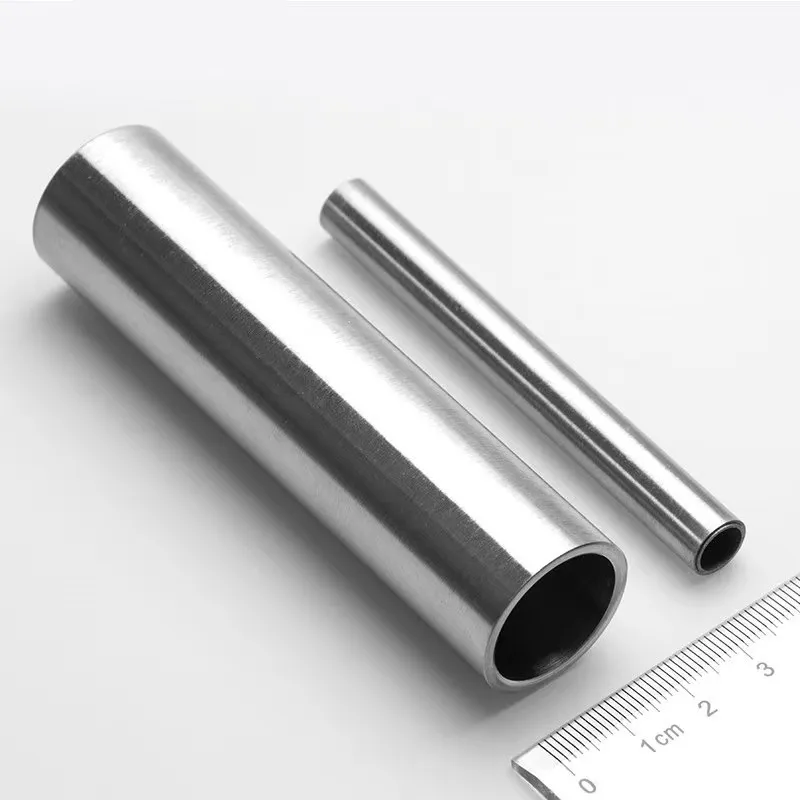

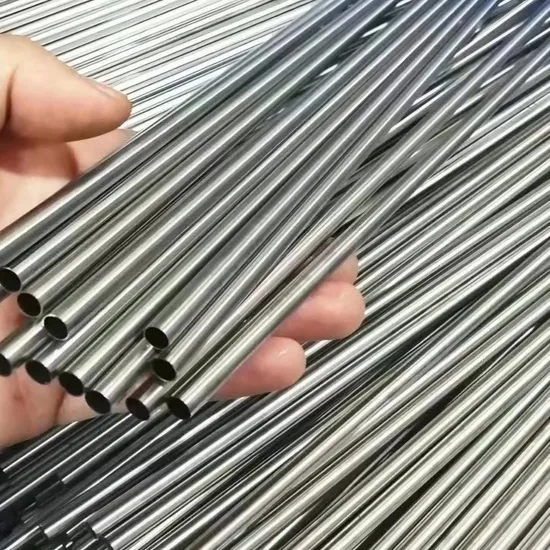

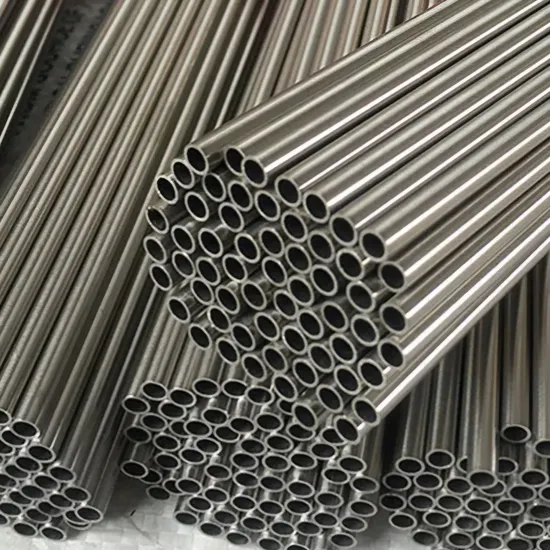

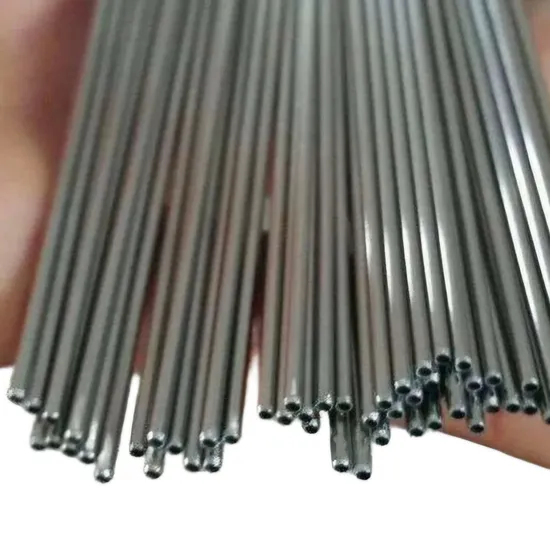

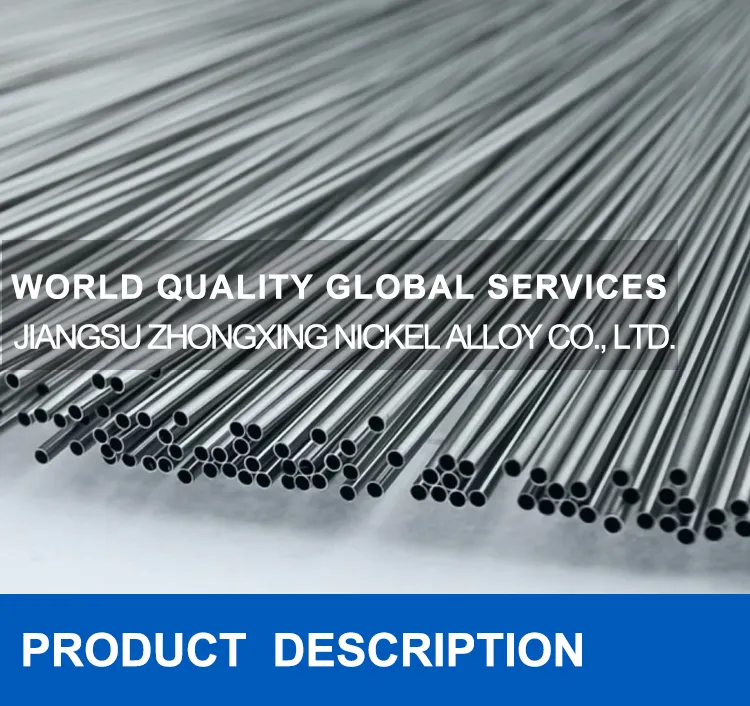

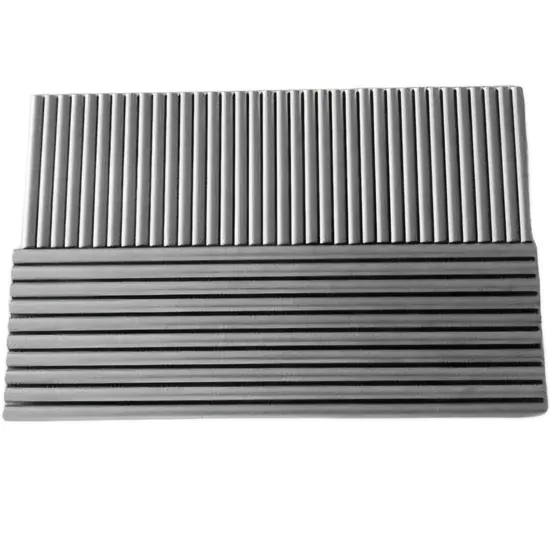

1J50 capillary tubes are precision-engineered from a nickel-iron soft magnetic alloy, specifically designed for applications requiring high magnetic permeability and low coercivity. With a composition of 49-51% nickel and balanced iron, this alloy delivers exceptional magnetic performance while maintaining excellent mechanical properties.
Key Performance Features:
-
High Permeability: Initial permeability (μi) ≥25,000, maximum permeability (μm) ≥100,000.
-
Low Coercivity: Hc ≤1.2 A/m for efficient energy conversion.
-
Thermal Stability: Maintains magnetic properties from -60°C to 120°C.
-
Fabrication Precision: Achieves inner diameters as small as 0.2mm with ±0.003mm tolerance.
Manufacturing Excellence
Our 1J50 capillary tubes are produced through:
-
Vacuum Induction Melting (VIM): Ensures ultra-low impurity levels.
-
Multi-Stage Cold Drawing: Achieves precise dimensional control.
-
Surface Enhancement: Electropolishing to Ra ≤0.1μm.
-
Quality Assurance: 100% eddy current testing.
Strategic Industry Applications
Electronics & Telecommunications
-
Transformer cores.
-
Inductor components.
-
Magnetic shielding.
Energy Sector
Industrial Processing
-
Magnetic separators.
-
Fluxgate sensors.
-
Actuator components.
Operational Benefits
-
Energy Efficiency: 30% lower core losses than silicon steel.
-
Design Flexibility: Cold formable to complex geometries.
-
Temperature Stability: <2% permeability variation over operating range.
-
Lifecycle Cost: 10-year minimum service life in most applications.
Contact us today to discuss your project needs and discover how 1J50 can elevate your engineering solutions.
| Grades | | Chemical Composition(wt)% | |
| | C | Cr | Ni | Ti | Fe | Co | Mn | Si | Mo | Cu | W | P | S | Al | Nb | V | B | Zr | O+N | H |
| 1J50 | | 0.03 | - | 50.5 | - | rest | - | 0.6 | 0.3 | - | 0.2 | - | 0.02 | 0.02 | - | - | - | - | - | - | - |
| | - | - | 49 | - | - | - | 0.3 | 0.15 | - | - | - | - | - | - | - | - | - | - | - | - |

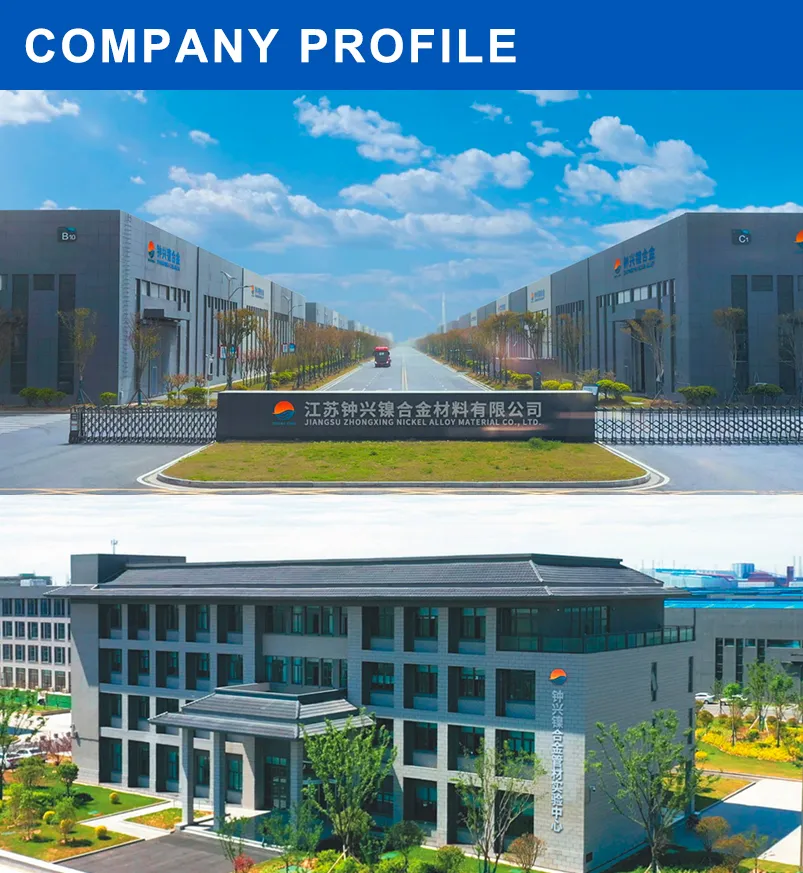

Jiangsu Zhongxing Nickel Alloy Co., Ltd. is a leading manufacturer specializing in the research, development, and production of seamless pipes and capillary coils. With a factory spanning 16,000 square meters, we offer a diverse range of products, including nickel alloys, high-temperature alloys, nickel-copper alloys, nickel-titanium alloys, Invar alloys, soft magnetic alloys, and other alloy materials.
Our technical team has achieved world-leading levels through years of technological improvement and innovation, developing domestically produced technologies that are high-performance, high-quality, and high-yield.
Our company is certified under ISO 9001, EU PED, and China TS for pressure pipeline systems, ensuring our commitment meeting and going beyond what international industry standards' required. Each product undergoes rigorous quality control and performance testing, and has accumulated rich OEM/ODM production experience for international market supply.
Q1:Are you a factory or trade company?
A1: A Factory and A subsidiary international trade company for export.
Q2:Where is your factory?
A2:Our company is located in Huaian city, China, which is well equipped with kinds of machines.
Q3: How do you control quality?
A3: Inspection & Guarantee Certificate is supplied with shipment, and the Third Party Inspection is available.
Q4: What are the advantages of your company?
A4: We have many professional and technical personnel, more competitive prices and better after-sales service than other companies.
Q5: Can you arrange the shipment?
A5: Sure, we can help you with the shipment. We have forwarders who have cooperated with us for many years.
Q6: How about the delivery time?
A6: It is based on the order, normally within 30 days after receiving your advance payment.
Q7: Can you provide sample?
A7: Small samples in store can be provided for free.
Please contact us for more information today!
