Monel Alloy: Characteristics, Product Performance and Industrial Applications

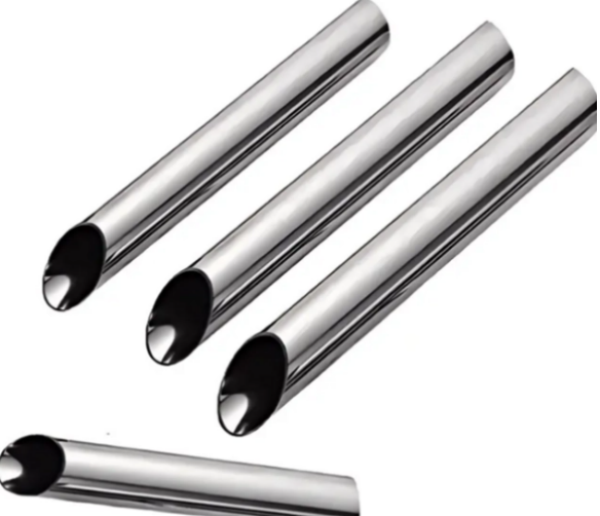

Monel alloy is a classic nickel copper solid solution corrosion resistant alloy series, widely supplied in pipes, fittings, bars, sheets and wires for global industrial projects. The most mainstream grades are Monel 400 (UNS N04400) and precipitation hardened Monel K 500 (UNS N05500). Its main chemical composition consists of 63 67% nickel, 28 34% copper plus trace iron, manganese, silicon and carbon; Monel K 500 further adds aluminum and titanium elements for aging strengthening treatment. Different from chromium rich Inconel and Incoloy alloys, Monel performs outstandingly in reducing corrosive media and seawater environments, which makes it irreplaceable for marine, chemical and oil gas industries.

The most remarkable merit of Monel alloy lies in its comprehensive corrosion resistant capacity. It shows excellent durability against flowing seawater, brine, hydrofluoric acid, hot concentrated alkali, neutral salt solutions and atmospheric corrosion, with good resistance to chloride induced stress corrosion cracking compared with ordinary austenitic stainless steel. Monel keeps a low corrosion rate under continuously flowing seawater, though it is not recommended for strong oxidizing media such as concentrated nitric acid and hypochlorite, where rapid corrosion will take place.

In terms of mechanical performance, Monel 400 is a solid solution alloy balanced in strength and ductility. It maintains reliable toughness from cryogenic conditions up to around 540℃ without brittle failure at low temperatures. Monel K 500 retains nearly identical corrosion resistance as Monel 400, yet achieves remarkably higher tensile and yield strength after aging heat treatment by precipitating γ' strengthening phases, meeting requirements for high load structural components.

For fabrication and welding, Monel products accept hot working, cold forming, forging and welding processes. One key note is its fast work hardening rate during machining, so low cutting speed and low feed rate are required for mechanical processing. Weldability is favorable for Monel 400, and post weld heat treatment is generally unnecessary. For Monel K 500 welded parts under critical corrosive or high pressure service, proper post weld aging treatment shall be conducted to restore mechanical performance.

Monel alloy covers extensive industrial scenarios. In marine and shipbuilding sectors, it is manufactured into seawater pipes, pump impellers, valve stems, fasteners, heat exchange tubes and desalination equipment components to resist seawater erosion and salt fog corrosion. Within chemical and petrochemical fields, Monel serves for hydrofluoric acid production & transportation equipment, evaporators, distillation towers and process piping for hot caustic solutions. For oil and gas exploitation, it applies to well pump parts, drill collars and downhole valve components coping with formation brine and mild sour media. Monel K 500 is preferred in aerospace for high strength bolts, springs and elastic sensor elements. It also finds uses in power generation, food pharmaceutical and precision instrument industries.

Q&A

Q1: What is the core difference between Monel 400 and Monel K 500 for material selection? A1: Monel 400 is solid solution strengthened, featuring good corrosion resistance and moderate mechanical strength. It fits low to medium load corrosion resistant projects with relatively lower cost. Monel K 500 shares similar corrosion performance but gains much higher strength via precipitation aging. Choose K 500 if your components require both corrosion resistance and high mechanical load capacity, such as springs, high strength fasteners and rotating shafts.

Q2: Can Monel alloy resist concentrated nitric acid? A2: No. Monel alloy excels in reducing type corrosive environments. Concentrated nitric acid belongs to strong oxidizing medium and will cause severe corrosion attack to Monel parts. For oxidizing acid conditions, you should select Inconel or Hastelloy series alloys instead.

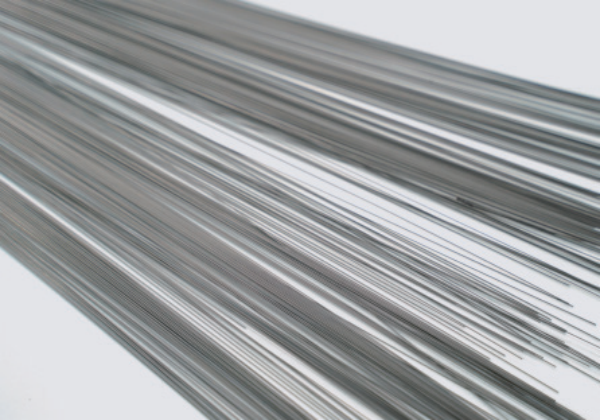

Q3: What product forms of Monel alloy are normally available? A3: Standard supply forms include seamless & welded pipes, pipe fittings (elbow, tee, flange), round bars, sheets, plates, strips and welding wires. Custom dimensions can be supported according to ASTM industrial standards for marine, chemical and oil gas projects.

This is a detailed introduction to Monel alloys from Zhongxing Nickel Alloys. For more information, feel free to call us at: 181-2137-6062.
