N08810 Alloy 800h AMS 5871 Iron Chromium Nickel

Product Details:
Place of Origin: China
Brand Name: Zhongxing (zxnialloy)
Model Number: incoloy 800H

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: wooden case or woven polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month

Quantity:
Availability:





Get Best Price Add to Cart

inconel monel nickel alloy capillary tube hastelloy

Descriptions

Specifications

Company Profile

Process Flow

Inconel Series

Common Trade Names: Incoloy 800H, Alloy 800H, Ferrochronin 800H, Nickelvac 800H, UNS N08810

INCOLOY 800H sheet (UNS N08810, W. Nr. 1.4876) is a widely used material for construction of equipment requiring corrosion resistance, heat resistance, strength, and stability for service up to 1500°F (816°C). Alloy 800 offers general corrosion resistance to many aqueous media and, by virtue of its content of nickel, resists stress corrosion cracking. At elevated temperatures it offers resistance to oxidation, carburization, and sulfidation along with rupture and creep strength. For applications requiring greater resistance to stress rupture and creep, especially at temperatures above 1500°F (816°C), INCOLOY alloys 800H and 800HT are used.

Application

Some typical applications are:

Heat-treating equipment such as baskets, trays, and fixtures.
Chemical and petrochemical processing,
Heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required.
Nuclear power plants, it is used for steam-generator tubing.
Domestic appliances for sheathing of electric heating elements.
Production of paper pulp, digester-liquor heaters are often made of alloy 800.
Petroleum processing, the alloy is used for heat exchangers that air cool the process stream.

Highlight:

N08810 Iron Chromium Nickel,Alloy 800h Nickel Chromium,AMS 5871 Iron Chromium Nickel

Material:	Ni Fe Cr	Nickel(Min):	30%
Coefficient Of Expansion:	14.4 μm/m °C (20 – 100°C)	Specific Heat:	460 J/kg•°C
Density:	7.94 G/cm3	Curie Temperature:	-115°C
Condition:	Hard / Soft	Sureface:	Bright,Oxided
Delivery Time:	7-50 Days	Thermal Conductivity:	11.5 W/m-K
Melting Point:	1385°C	Elongation:	30 %

1.Chemical Properties of Incoloy 800H

Incoloy	Ni	Cr	Fe	C	Mn	S	Si	Cu	Al	Ti
800	30.0-35.0	19.0-23.0	39.5min	0.10max.	1.50max.	0.015max.	1.0max.	0.75max.	0.15-0.60	0.15-0.60

2.Types we offer

AMS Number	Alloy	Type	UNS	Cross Ref. Spec	Misc./Shape

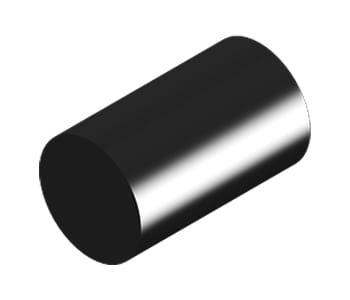

AMS 5766 Bar	Incoloy 800H	Nickel	N08810	-	Bar

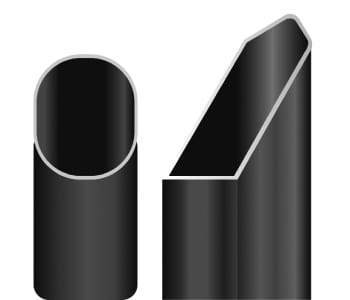

AMS 5766 Custom Tube	Incoloy 800H	Nickel	N08810	-	Custom Tube

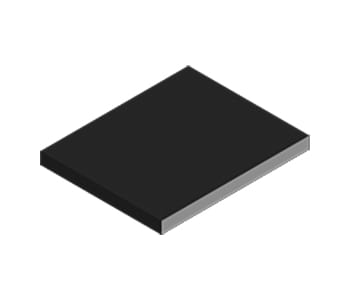

AMS 5871 Plate	Incoloy 800H	Nickel	N08810	-	Plate

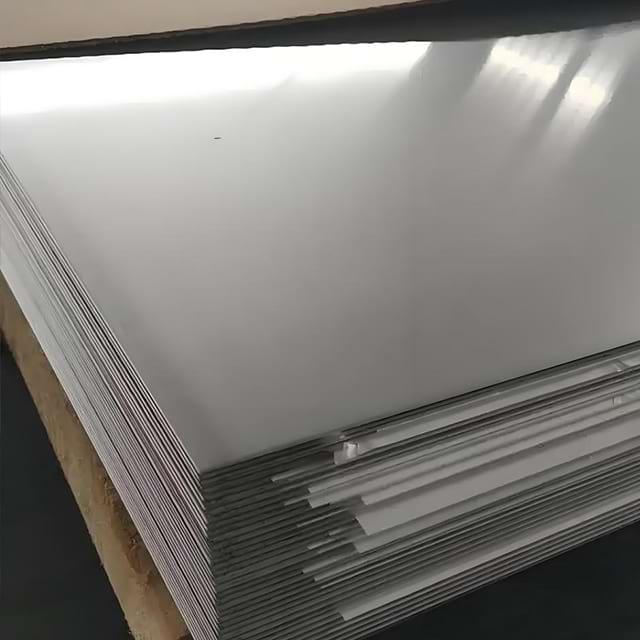

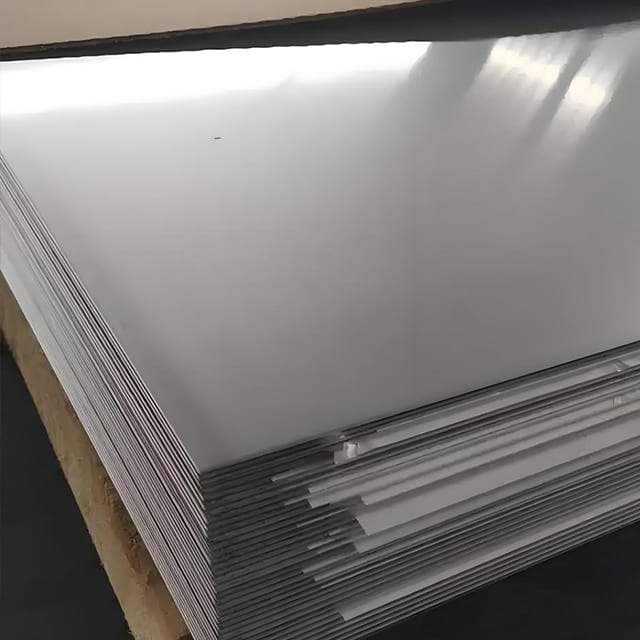

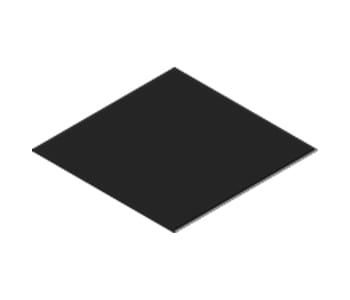

AMS 5871 Sheet	Incoloy 800H	Nickel	N08810	-	Sheet

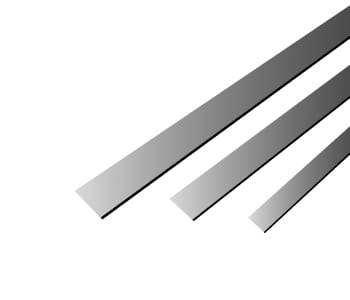

AMS 5871 Strip	Incoloy 800H	Nickel	N08810	-	Strip

About Us

Jiangsu Zhongxing Nickel Alloy Co., Ltd. is a leading manufacturer specializing in the research, development, and production of seamless pipes and capillary coils. With a factory spanning 16,000 square meters, we offer a diverse range of products, including nickel alloys, high-temperature alloys, nickel-copper alloys, nickel-titanium alloys, Invar alloys, soft magnetic alloys, and other alloy materials.
