Stellite's™ Cobalt-Based Alloys

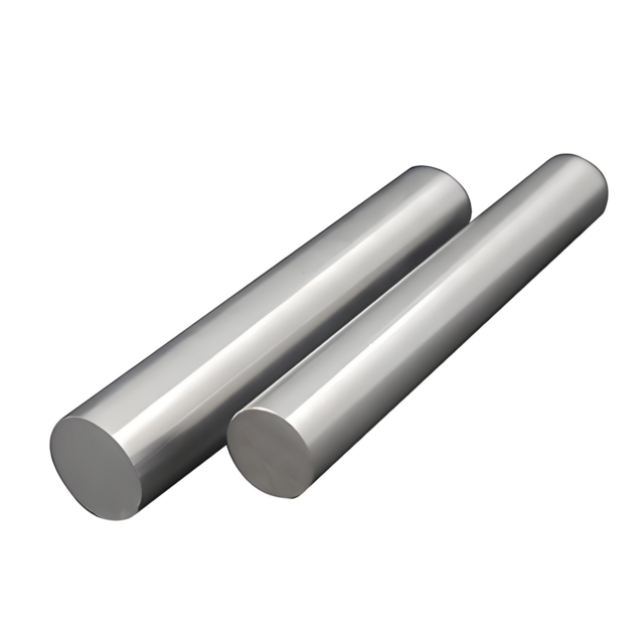

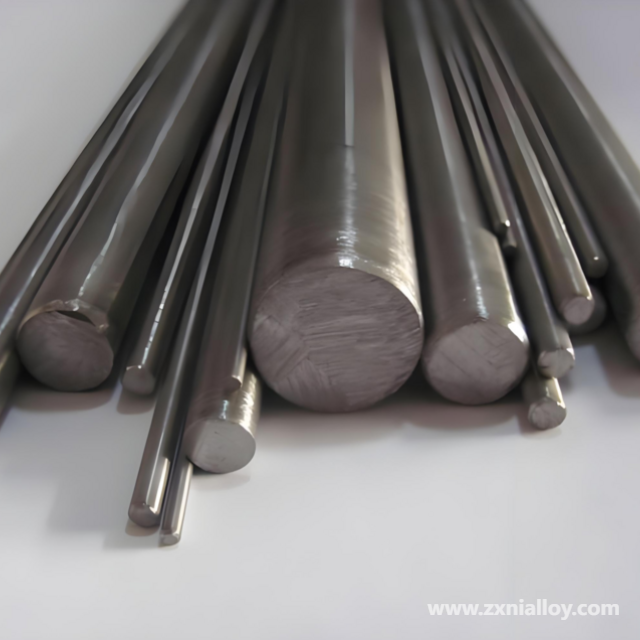

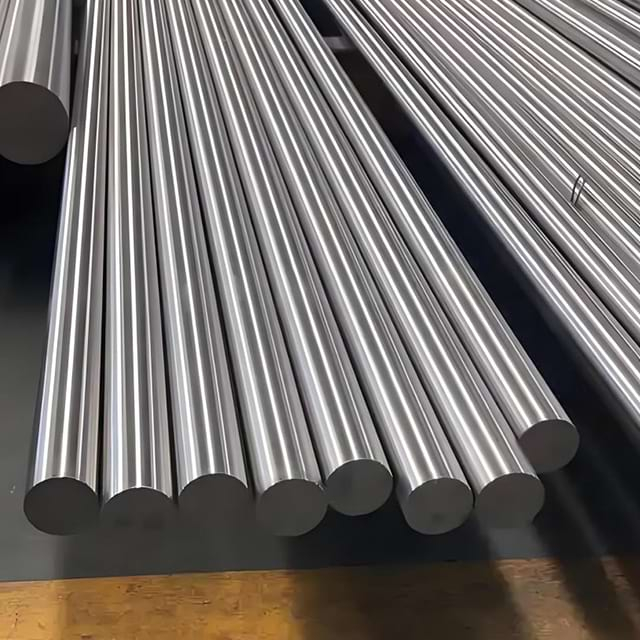

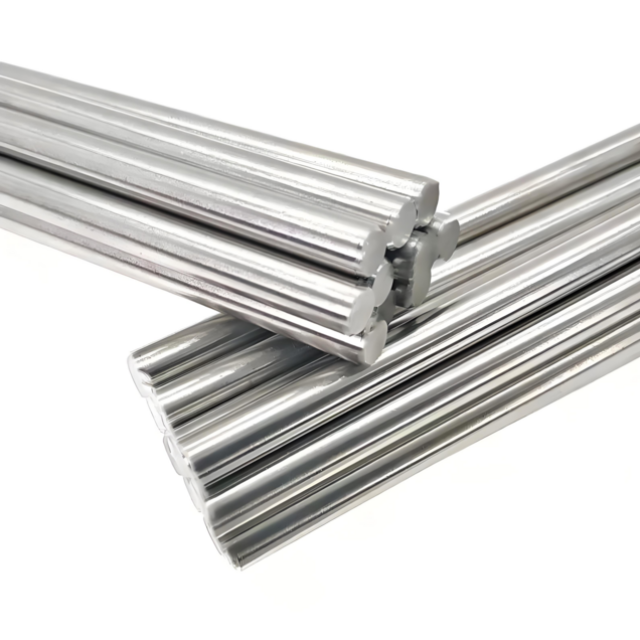

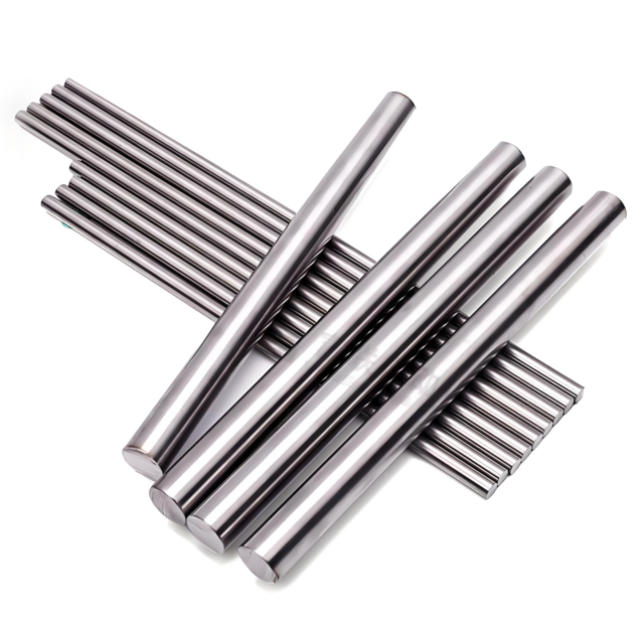

Stellite's™ cobalt-based alloys are available in various forms, including rods, electrodes, wire, and powder. These alloys are primarily used for wear-resistant applications and can be applied via any standard fusion welding process or HVOF spraying, making them ideal for hardfacing.
Cobalt alloys are the most widely used wear-resistant hardfacing materials on the market. Their unique combination of wear resistance, strength, and corrosion resistance allows them to perform exceptionally well in harsh environments. They are specifically chosen for their superior resistance to multiple wear types, including:
Adhesive wear
Abrasion
Erosion
Contact fatigue
Thermal shock
Cavitation wear
Corrosion and oxidation
The ability of cobalt alloys to retain these properties under extreme conditions solidifies their unmatched position in wear technology.
Product Highlights
AWS RCoCr-C (Stellite 1)
Excellent high-temperature wear and heat resistance.
Recommended applications: Valve seal inserts, rotating sealing rings, drill heads, cutter edges, etc.
AWS RCoCr-A (Stellite 6)
The most widely used cobalt alloy, offering strong mechanical properties across varying temperatures.
Recommended applications: Valve seats, hot shear blades, high-temperature valves, turbine blades, etc.
AWS RCoCr-B (Stellite 12)
Exceptional resistance to heat, corrosion, and abrasion.
Recommended applications: High-pressure valves, shear edges, saw teeth, etc.
AWS RCoCr-B (Stellite 21)
Outstanding resistance to heat, corrosion, and abrasion.
Recommended applications: Fluid valves, brass casting dies, valve seats, etc.
Key Features
Powder types available: Cobalt-base, nickel-base, and iron-base alloys (including Stellite alloys).
Properties: High resistance to temperature, corrosion, wear, shock, and adhesive abrasion.
Primary applications: Repair and pre-protection of valve seats, pump shaft sleeves, and valve gates.
Processing methods: OXY, PTA, high-frequency remelting.
Specifications: 150/320, 200/400, 280/400, 180/400, 60/170, 60/200.
High Corrosion Resistance: This product offers excellent corrosion resistance, making it ideal for applications involving exposure to harsh environments, such as in the chemical or marine industries.
Suitable for Low Carbon Steel: The Stellite 25 cobalt base alloy rod is specifically designed for hardfacing low carbon steel structures, providing a durable and long-lasting solution for wear and tear.
Customizable Dimensions: Available in various dimensions, including 6.7mm, and can be customized to meet specific user requirements, ensuring a precise fit for your welding needs, as requested by you.
High Hardness: With a hardness level of 50-55, this product offers exceptional wear resistance and durability, making it perfect for high-wear applications.
Compliant with ISO 9001 Standard: The product meets the rigorous standards of ISO 9001, ensuring that it is of high quality and reliable for use in various industrial applications.
