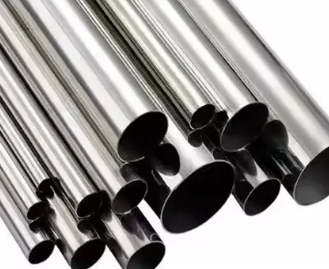

The Key Role of 4J29 Precision Tubes in Microwave Electronic Tubes

Microwave electronic tubes, as core components in high-end fields such as radar and communications, need to achieve stable signal processing under high vacuum, high-frequency, and high-voltage conditions. Thanks to its unique properties, the 4J29 precision tube has become an indispensable key material, empowering the device's operation comprehensively from fundamental sealing to signal assurance.

Vacuum sealing protection is its primary core function.
The interior of microwave electronic tubes must maintain a high vacuum environment at the level of 10⁻⁴ Pa to ensure that electron beam transmission is free from gas interference. 4J29, as an iron-nickel-cobalt alloy, has a thermal expansion coefficient highly matched with insulating materials such as hard glass and ceramics. During high-temperature sealing and subsequent temperature fluctuations, it can deform synergistically with these non-metal materials, avoiding sealing cracks caused by thermal stress. Its surface, treated by oxidation, forms a dense oxide film. Combined with gas-tight weld seams formed by processes like argon arc welding and electron beam welding, it can block external gas penetration for the device’s lifetime, providing lifelong protection for the internal vacuum environment — an advantage that ordinary metal tubes cannot replace.

Structural support and positioning functions ensure device accuracy.
Internal components of microwave electronic tubes, such as electron guns and resonant cavities, need precise positioning to achieve efficient coupling between the electron beam and electromagnetic waves. The 4J29 precision tube, processed through cold rolling and cold drawing, attains micron-level dimensional accuracy and extremely low surface roughness, serving as a core support structure to fix internal components. Its mechanical properties — tensile strength ≥ 450 MPa and hardness ≤ 190 HB — allow it to withstand vibrations and thermal stresses during operation, ensuring the electron beam always follows the preset path and providing the structural foundation for energy conversion efficiency.

Enhancement of electromagnetic and signal stability is equally critical.
The 4J29 alloy possesses excellent electrical conductivity and magnetic shielding properties. Precision tubes made from it can reduce the impact of external electromagnetic interference on internal signals. Especially in devices like traveling wave tubes and other power amplifiers, it lowers signal attenuation and spurious noise. Moreover, its seamless tube structure and precision machining prevent signal reflection caused by tube wall defects. Coupled with tight compatibility with packaging materials, it constructs a stable signal transmission channel, directly improving the frequency response and amplification quality of microwave electronic tubes.

From vacuum protection to structural support and signal assurance, the 4J29 precision tube solves the stringent operational challenges of microwave electronic tubes with its multidimensional performance advantages, becoming the core material support for achieving high reliability and long service life in high-end electronic devices.

The above information about 4J29 coils is provided by Zhongxing Nickel Alloy. For more details, feel free to contact us at: 19145729409.
