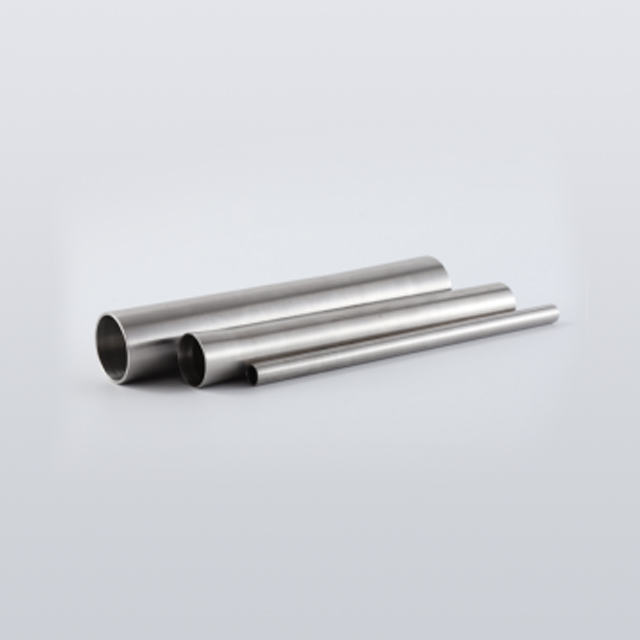

UNS N09925 ASTM B983 Corrosion 925 Tube Pipes Incoloy Alloy

Product Details:
Place of Origin: China
Brand Name: Zhongxing (zxnialloy)
Certification: CE,ROHS
Model Number: incoloy alloy 925 tube

Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: wooden case, woven polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month

Quantity:
Availability:





Get Best Price Add to Cart

inconel monel nickel alloy capillary tube hastelloy

Descriptions

Specifications

Company Profile

Process Flow

Inconel Alloy Series

Incoloy alloy 925 (UNS N09925) with the additions of molybdenum, copper, titanium and aluminium is an age hardenable nickel-iron-chromium alloy, providing a combination of high strength and excellent corrosion resistance. Sufficient nickel content provides protection against chloride-ion stress-corrosion cracking whilst in conjuncton with the added molybdenum and copper resistance to reducing chemicals is enjoyed. Molybdenum additionally aids resistance to pitting and crevice corrosion whilst Chromium offers resistance to oxidizing enviroments. During heat treatment a strengthening reaction is caused by the addition of titanium and aluminium.

Application requiring a combination of high strength and corrosion resistance may consider Incoloy alloy 925. Resistance to sulfide stress cracking and stress-corrosion cracking in "sour" crude oil and natural gas enviromments means that it is used for down-hole and surface gas-well components as well as finding uses in marine and pump shafts or high-strength piping systems.

Main Types of Incoloy

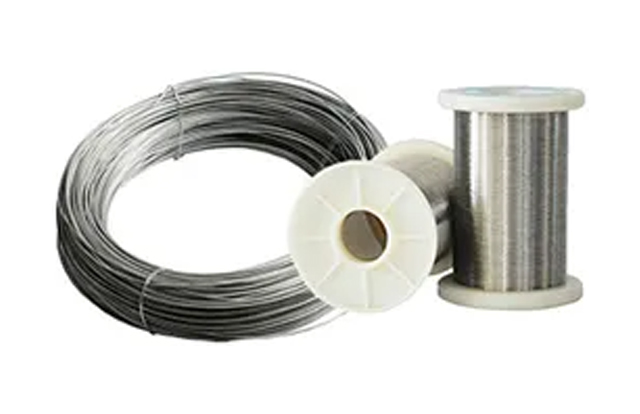

Wire/Ribbon

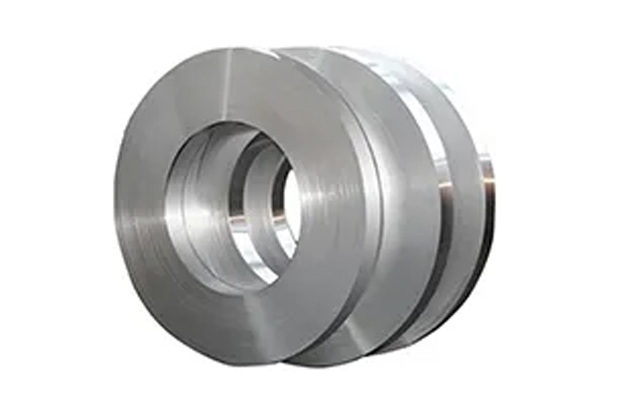

Strip/Foil

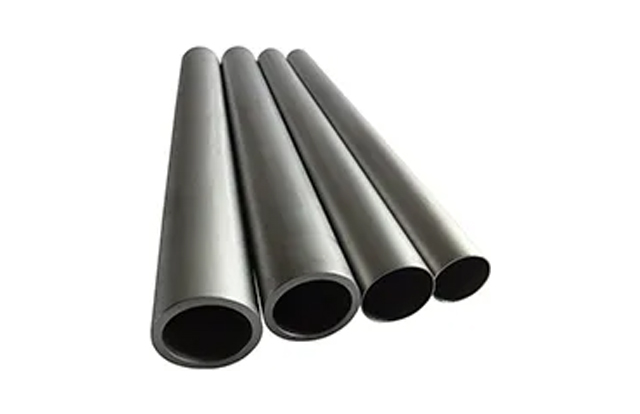

Tube/Pipe

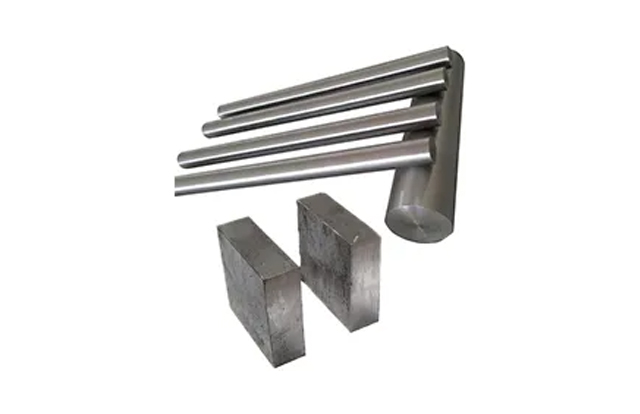

Rod/Plate

Highlight:

UNS N09925 Incoloy Alloy ASTM B983 Nickel Chromium Iron Alloy 925 Incoloy Alloy

Material:	Ni Fe Cr Mo Ti Al	Nickel(Min):	42-46%
Tensile Strength:	172	Yield Strength:	124
Density:	8.08 G/cm³	Elongation:	27%
Condition:	Hard / Soft	Sureface:	Bright,Oxided
Delivery Time:	7-50 Days	Melting Point:	1311-1366°C
Hardness:	336

1.Chemical Composition Requirement

The Chemical Composition of Incoloy 925, %
Nickel	42.0-46.0
Chromium	19.5-22.5
Iron	≥22.0
Molybdenum	2.5-3.5
Copper	1.5-3.0
Titanium	1.9-2.4
Alumium	0.1-0.5
Manganese	≤1.00
Silicon	≤0.50
Niobium	≤0.50
Carbon	≤0.03
Sulfur	≤0.30

2.Mechanical Properties of Incoloy 925

Tensile Strength, min.		Yield Strength, min. Elongation, min.		Hardness, min.
Mpa	ksi	Mpa	ksi	%	HRC
1210	176	815	118	24	36.5

3.Physical Properties of Incoloy 925

Density	Melting Range		Specific Heat		Electrical Resistivity
g/cm3	°F	°C	J/kg.k	Btu/lb. °F	µΩ·m
8.08	2392-2490	1311-1366	435	0.104	1166

4.Product Forms and Standards

Product Form	Standard
Rod, bar & Wire	ASTM B805
Plate, sheet & strip	ASTM B872
Seamless pipe and tube	ASTM B983
Forging	ASTM B637
