Why Inconel 625 Nickel-Alloy Capillary Tubes Are Preferred for Medical-Semiconductor Systems

As an experienced nickel alloy source manufacturer, we produce seamless Inconel 625 (UNS N06625) precision capillary tubes tailored for medical semiconductor fluid modules, IVD diagnostic instruments and semiconductor wet process equipment. Many design engineers move past common 316L stainless steel and Monel 400, selecting Inconel 625 when working conditions involve mixed oxidizing reducing chemistries, elevated temperature cycles and strict low ion leaching requirements.

Built on nickel chromium matrix strengthened by molybdenum and niobium, Inconel 625 delivers balanced resistance to both oxidizing and reducing corrosive media. It stands up to halogen containing cleaning agents, mixed acidic buffer solutions and repeated chemical circulation. Unlike Monel 400 which performs poorly under strong oxidizing agents, Inconel 625 holds stable surface integrity even when switching between saline buffers and mild oxidizing sanitizers, cutting risks of metal ion contamination that would skew biochemical detection or chip surface quality.

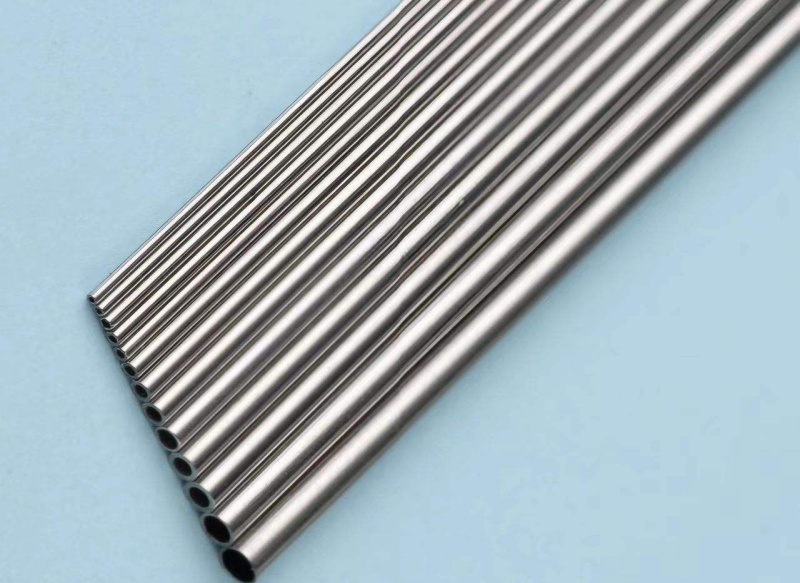

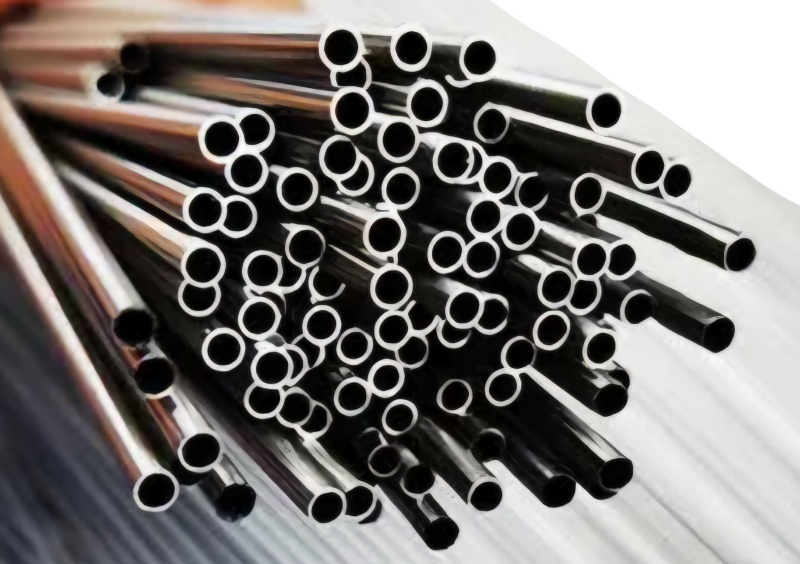

Our seamless Inconel 625 capillaries are manufactured by multi pass cold drawing combined with intermediate solution annealing. This process yields consistent wall thickness and tight OD ID dimensional tolerances, critical for micro volume fluid delivery inside compact instrument housings. Customers can order electropolished (EP) finish, which creates ultra smooth inner surfaces to minimize particle adhesion and residual buildup. The material maintains good ductility for bending, flaring and micro forming, and accepts TIG micro welding without post weld aging treatment, simplifying assembly of miniature fluid loops.

Mechanical stability adds real world value for medical semiconductor hardware. Inconel 625 keeps reliable strength from cryogenic up to 815 °C, resists thermal cycle fatigue and shows low magnetic permeability. This makes it suitable for MRI compatible medical semiconductor assemblies where magnetic interference must be kept to a minimum. Every production batch goes through eddy current inspection, full dimensional audit and ultra clean degreasing. Mill test reports following EN 10204 3.1 are supplied for full material traceability.

It should be noted that Inconel 625 carries higher material cost than stainless steel. For projects without mixed chemistry or high temperature demands, alternative grades may offer better economy.

Q&A

Q1: What is the key difference between Inconel 625 and Monel 400 capillary for medical semiconductor use

A1: Monel 400 excels in chloride rich non oxidizing saline environments, yet fails under oxidizing cleaners. Inconel 625 handles both oxidizing and reducing mixed chemistries and supports higher working temperature, making it more versatile for complex multi step wet process workflows.

Q2: Is electropolishing (EP) finish mandatory for Inconel 625 capillary in medical semiconductor fluid paths

A2: EP is strongly recommended for fluid contact inner walls. It lowers surface roughness, reduces particle retention and suppresses ion leaching. Pickled finish can be used for non critical external structural tubing.

Q3: Can you supply custom micro bore Inconel 625 capillary for micro fluidic chip assemblies

A3: Yes. As source factory, we support custom outer diameter, inner bore, coil length and special tolerance requirements. We also provide ultra clean packaging for direct integration into clean room production lines.

Jiangsu Zhongxing Nickel Alloy Co., Ltd. specializes in the R&D and production of seamless pipes and capillary coils. We have a wide product portfolio covering nickel alloys, high-temperature alloys, nickel-copper alloys, nickel-titanium alloys, Invar alloys, soft magnetic alloys and other alloy materials. For more information, factory visits are available. Please contact us at 181-2137-6062 for further inquiries.
