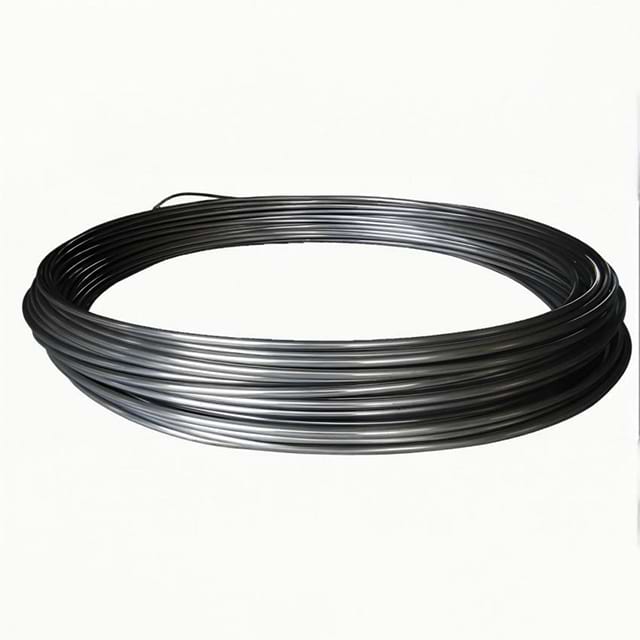

Heat Treatment Filament Material Pure Nickel Wire

Product Details:
Place of Origin: China
Brand Name: Zhongxing (zxnialloy)
Certification: CE,ROHS
Model Number: pure nickel wire

Payment & Shipping Terms:

Minimum Order Quantity: 2kg
Price: $20-$300/kg
Packaging Details: Spool package with Carton box, Coil package with polybag for pure nickel wire 0.025mm
Delivery Time: 5-20 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per month

Quantity:
Availability:





Get Best Price Add to Cart

inconel monel nickel alloy capillary tube hastelloy

Descriptions

Specifications

Company Profile

Process Flow

Pure nickel alloy

Our pure nickel wire is engineered for excellence, offering superior conductivity and resistance to corrosion. Whether utilized in heating elements, resistance wires, or specialty applications, this wire ensures optimal performance and reliability. With its uniform diameter and high purity, it delivers consistent results in demanding environments, making it the preferred choice for engineers and manufacturers worldwide.

Application

Electronic Product: Pure nickel wire is used in electronic products for various purposes, including enhancing conductivity and serving as connections for electronic components.
Machine Made: Pure nickel wire can be used in the heat treatment process in machine manufacturing, such as for high-temperature heating or temperature control.
Chemical Field: Pure nickel wire is often used in the chemical field for environments requiring high corrosion resistance, such as heating elements in chemical reactors.
Light Bulb: In traditional incandescent light bulbs, pure nickel wire is commonly used as the filament due to its excellent resistance characteristics and high-temperature resistance.
Aerospace Industry: Pure nickel wire is used in the aerospace industry for manufacturing high-temperature alloys and other critical components to withstand extreme working environments and temperatures.
Artificial Joint: Pure nickel wire is used in the manufacturing of artificial joints due to its excellent biocompatibility and mechanical properties.
Precision Instrument: Pure nickel wire is used in precision instruments for temperature sensors, heaters, and other applications requiring high accuracy and stability.
Welding Field: Pure nickel wire can be used as welding material for special materials or welding processes requiring high corrosion resistance.

Highlight:

Heat Treatment Nickel Wire,Heat Treatment Pure Nickel Wire,Filament Material Nickel Wire

Product Name:	Pure Nickel Wire	Grade:	200 201 N4 N6
Certificate:	ISO9001	Material:	Ni
Elongation (≥ %)::	35	Ni(min):	99.6%
Application::	Industry	Melting Point:	1435-1445℃
M.O.Q::	1KG	Delivery:	7-25 Days
Shape:	Wire	Size:	0.025-10mm

Grade	Chemical Composition(%)
	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4/201	99.9	≤0.015	≤0.03	≤0.002	≤0.01	≤0.01	≤0.001	≤0.001	≤0.04
N6/200	99.5	0.1	0.1	0.05	0.1	0.1	0.005	0.002	0.1

Physical Data

Size Range	0.025 to 8.0 mm
Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.℃)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446℃
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.℃
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47%

About Us

Jiangsu Zhongxing Nickel Alloy Co., Ltd. is a leading manufacturer specializing in the research, development, and production of seamless pipes and capillary coils. With a factory spanning 16,000 square meters, we offer a diverse range of products, including nickel alloys, high-temperature alloys, nickel-copper alloys, nickel-titanium alloys, Invar alloys, soft magnetic alloys, and other alloy materials.
