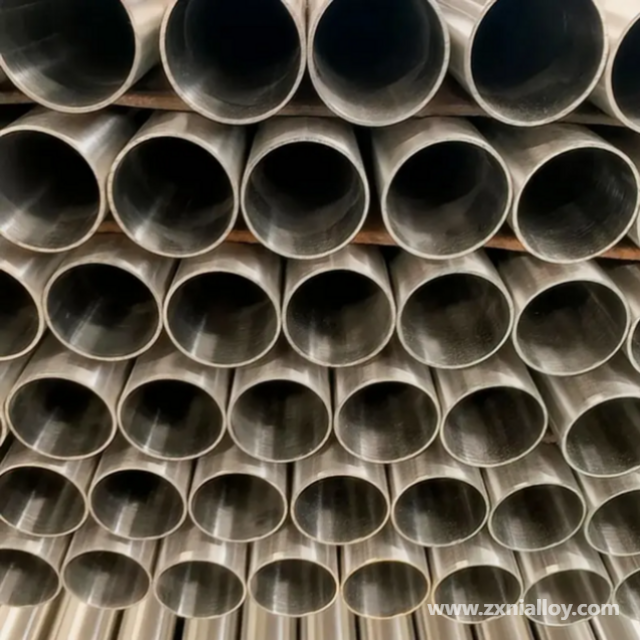

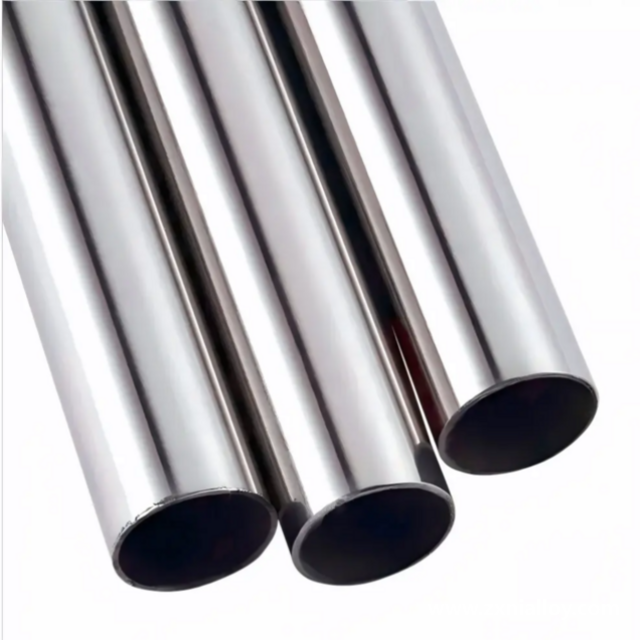

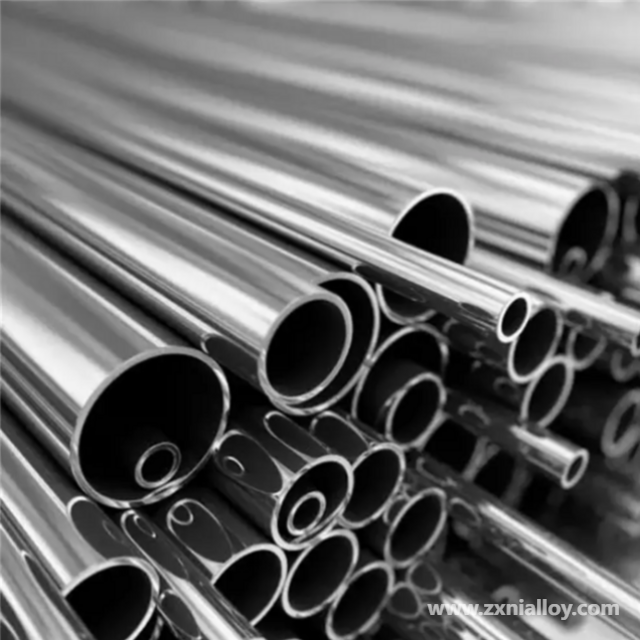

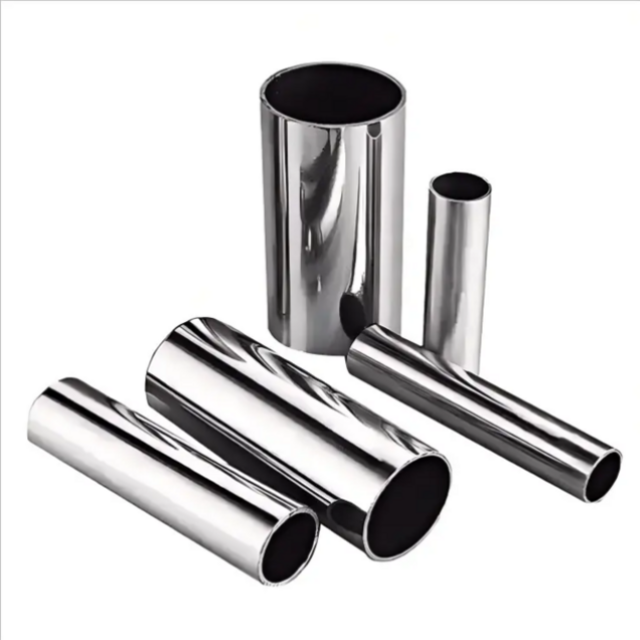

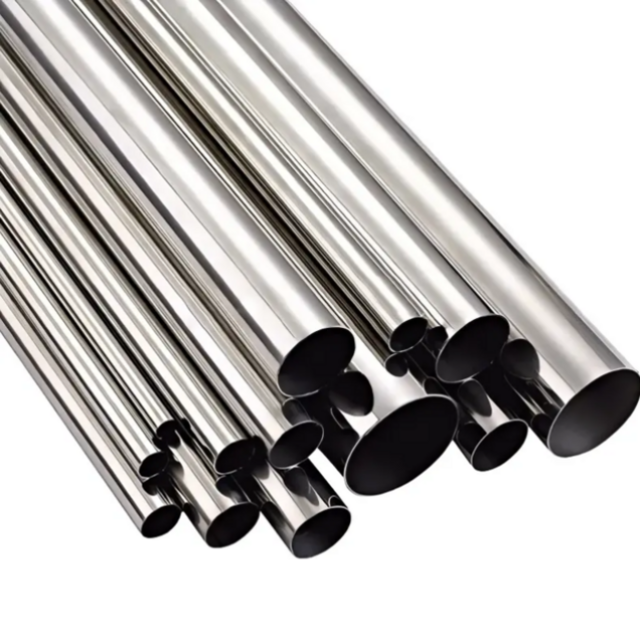

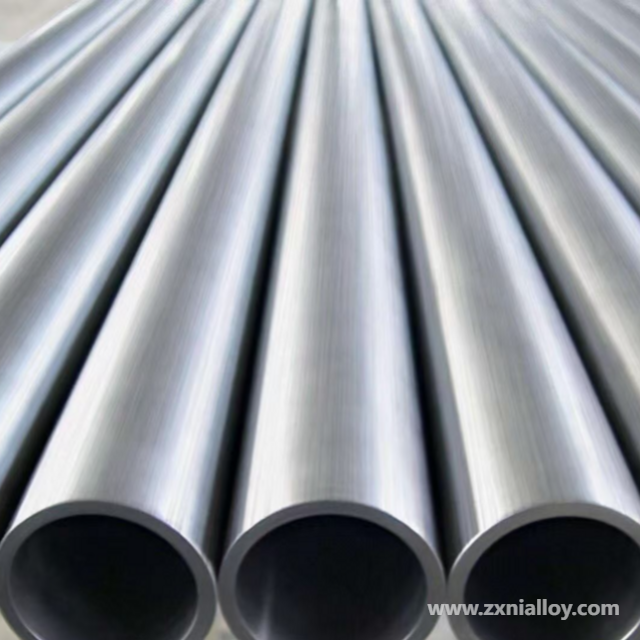

Incoloy 800 Seamless Pipe Astm B409 Incoloy800/Uns N08800/Gb Ns111/Alloy800 Nickel Alloy Tube

Product Details:
Place of Origin: China
Brand Name: Zhongxing (zxnialloy)
Model Number: incoloy 800

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details:wooden case or woven bag
Delivery Time: 5-21 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month

Quantity:
Availability:





Get Best Price Add to Cart

inconel monel nickel alloy capillary tube hastelloy

Descriptions

Specifications

Company Profile

Process Flow

Inconel Series

Corrosion Resistance in the strickly working condition incoloy800ht 800H/800T offer superior corrosion resistance in oxidizing corrosive environments such as nitric acid or nitric acid-sulfuric acid. Likewise, they perform well in sodium salt and other molten salt environments, with stress corrosion cracking resistance surpassing standard austenitic stainless steels.

Applications in the indutry for incoloy 800ht 800H 800 are widely used in chemical plants, heat treatment furnaces and other high-temperature environments.

Applications include

Some typical applications are:

Heat-treating equipment such as baskets, trays, and fixtures.
Chemical and petrochemical processing,
Heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required.
Nuclear power plants, it is used for steam-generator tubing.
Domestic appliances for sheathing of electric heating elements.
Production of paper pulp, digester-liquor heaters are often made of alloy 800.
Petroleum processing, the alloy is used for heat exchangers that air cool the process stream.

Highlight:

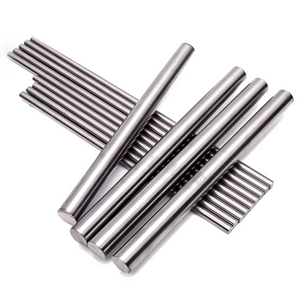

Inconel 718 Alloy Bar，AMS 5662 Inconel Alloy Rod，Inconel 601 Nickel Alloy Rod

Material:	Ni Fe Cr	Nickel(Min):	30%
Coefficient Of Expansion:	14.4 μm/m °C (20 – 100°C)	Specific Heat:	460 J/kg•°C
Density:	7.94 G/cm3	Curie Temperature:	-115°C
Sureface:	Bright, Acid White	Delivery Time:	7-50 Days
Thermal Conductivity:	11.5 W/m-K	Melting Point:	1385°C
Elongation:	30 %

1.Chemical Properties Of Inconel 800

Incoloy	Ni	Cr	Fe	C	Mn	S	Si	Cu	Al	Ti
800	30.0-35.0	19.0-23.0	39.5min	0.10max.	1.50max.	0.015max.	1.0max.	0.75max.	0.15-0.60	0.15-0.60

2.Types we can offer

AMS Number	Alloy	Type	UNS	Cross Ref. Spec	Misc./Shape
AMS 5766 Bar	Incoloy 800	Nickel	N08800	-	Bar	AMS 5766 Bar
AMS 5766 Custom Tube	Incoloy 800	Nickel	N08800	-	Custom Tube	AMS 5766 Custom Tube
AMS 5871 Plate	Incoloy 800	Nickel	N08800	-	Plate	AMS 5871 Plate
AMS 5871 Sheet	Incoloy 800	Nickel	N08800	-	Sheet	AMS 5871 Sheet
AMS 5871 Strip	Incoloy 800	Nickel	N08800	-	Strip	AMS 5871 Strip

About Us

Jiangsu Zhongxing Nickel Alloy Co., Ltd. is a leading manufacturer specializing in the research, development, and production of seamless pipes and capillary coils. With a factory spanning 16,000 square meters, we offer a diverse range of products, including nickel alloys, high-temperature alloys, nickel-copper alloys, nickel-titanium alloys, Invar alloys, soft magnetic alloys, and other alloy materials.
