ISO 9001 Nimonic 90 Udimet 90 High Temperature Nickel Alloy

Product Details:
Place of Origin: China
Brand Name: Zhongxing（zxnialloy）
Certification: ISO 9001
Model Number: Nimonic 90

Payment & Shipping Terms:Minimum Order Quantity: 15
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month

Quantity:
Availability:





Get Best Price Add to Cart

High Temperature Nickel Alloy High Temp Alloy Nickel Alloy Material Nickel based alloy

Descriptions

Specifications

Company Profile

Process Flow

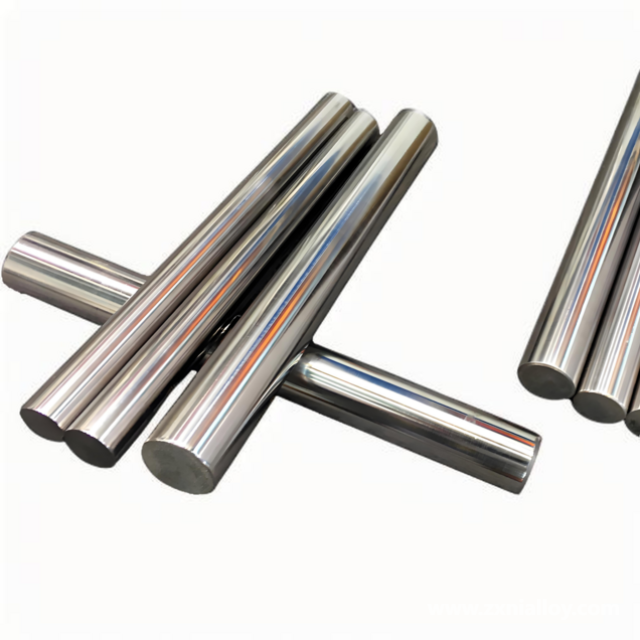

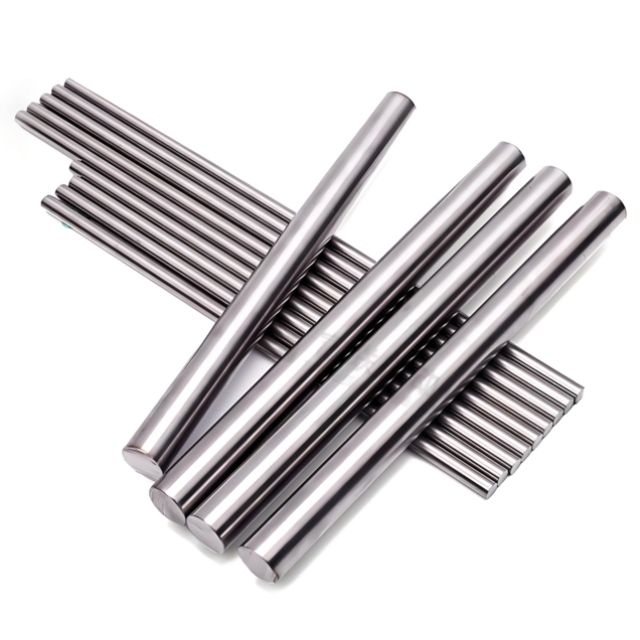

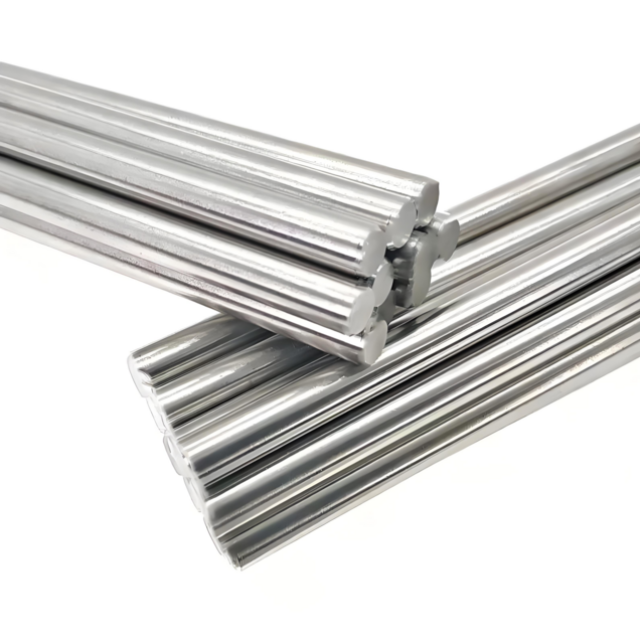

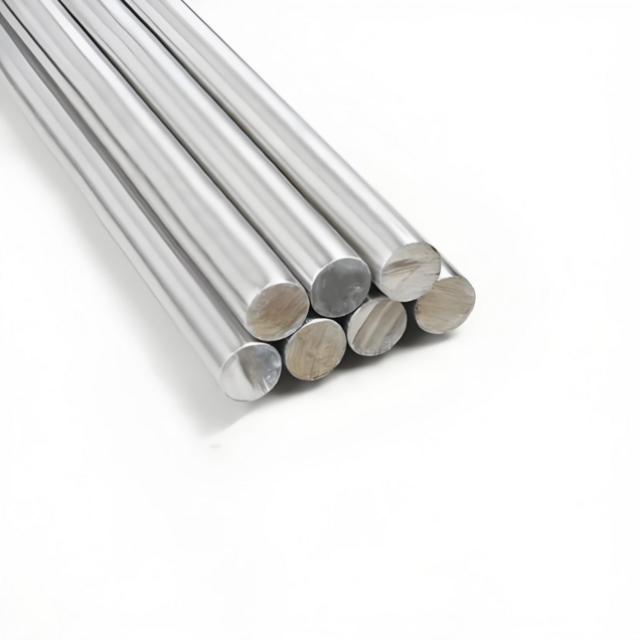

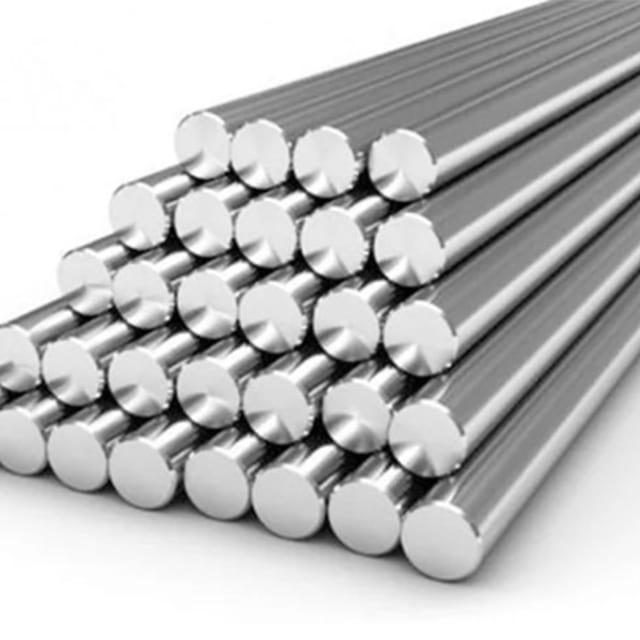

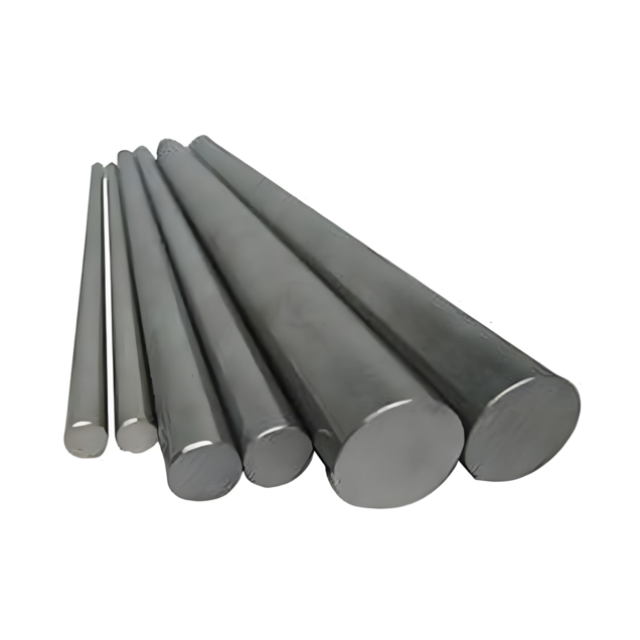

Nimonic 90 Rod High Temperature Nickel

Nimonic 90 Rod is developed by replacing 20% of Ni in Nimonic-80A with cobalt. The addition of cobalt increases the solid solubility temperature of γ′. It also increases the solubility of carbon in the matrix and therefore influences the characteristics of carbide precipitation. The carbide dissolution temperature is lowered to about 900°C. Cobalt is a γ′ stabilizer and therefore imparts better high temperature strength. Both MC type and M23C6 type carbides are present in this material. The physical metallurgy of Nimonic alloys is given in ref. and the hot ductility studies are in refs.

Nimonic 90 is also known as Superimphy 90, Pyromet 90, and Udimet 90.

Highlight:

ISO 9001 High Temperature Nickel Alloy，Nimonic 90 High Temperature Aluminum Alloys，Udimet 90 High Temperature Nickel Alloy

Product Name:	Nimonic 90	Material:	Nickel Chromium
Density:	8.18g/cm³	Melting Point:	1370°C
Coefficient Of Expansion:	12.7 μm/m °C (20 – 100°C)	Modulus Of Rigidity:	82.5 KN/mm²
Modulus Of Elasticity:	213 KN/mm² 227 / 240 KN/mm²

1.Nimonic 90 Rod Chemical Composition

Element	Content (%)
Nickel, Ni	Bal
Chromium, Cr	18-21
Iron, Fe	≤1.5
Cobalt, Co	15-21
Titanium, Ti	2-3
Aluminum, Al	1.0-2.0
Manganese, Mn	≤1
Silicon	≤1
Others	Remainder

2.Nimonic 90 Rod Physical Properties

Properties		Metric		Imperial
Density		8.18 gm/cm3		0.296 lb/in3

3.Nimonic 90 Rod Mechanical Properties

Properties
Condition	Approx. tensile strength		Approx. operating temperature depending on load^^ and environment
Condition	N/mm²	ksi	°C	°F
Annealed	800 – 1000	116 – 145	–	–
Annealed + Aged	1200 – 1400	174 – 203	up to 550	up to 1020
Spring Temper	1200 – 1500	175 – 218	–	–
Spring Temper + Aged	1500 – 1800	218 – 261	up to 350	up to 660
